CC Type Rubber Expansion Joint for Continuous Casting Equipment
Flexible Strength, Reliable Safety
CC Type RubberExpansion Joint forContinuous CastingEquipment-Product Introduction
The CC Type Rubber Expansion Joint is a highly specialized product specifically designed for continuous casting equipment used in demanding industrial environments such as steel plants and heavy manufacturing facilities. It provides effective solutions for critical challenges including vibration absorption, stress relief, and thermal expansion compensation, ensuring the structural stability of pipelines and enhancing operational efficiency. By addressing the dynamic demands of continuous casting systems, the CC Type Rubber Expansion Joint significantly improves equipment reliability and reduces downtime caused by mechanical stress or alignment issues.
This joint is constructed from high-strength rubber reinforced with metal or fabric elements, delivering exceptional resistance to wear, high temperatures, and extreme pressures. To further meet specific application requirements, it can be customized with advanced linings, such as PTFE, EPDM, or NBR, to offer superior corrosion protection in environments with aggressive chemicals or high-pressure steam. The flexible design effectively absorbs axial, lateral, and angular movements caused by pipeline misalignment or thermal expansion, reducing strain on connected equipment and extending the overall lifespan of the system.
In addition to its durability, the CC Type Rubber Expansion Joint is designed to perform efficiently across a wide range of operating conditions. It handles pressures up to 25 bar and temperatures ranging from -20°C to 120°C, with further customization available for specialized applications requiring higher tolerances. Its flanged connection options, compatible with ANSI, DIN, or JIS standards, ensure easy installation and seamless integration into existing pipeline systems.
The versatile design makes it ideal for a variety of applications, including continuous casting systems, cooling water pipelines, and casting facilities, as well as thermal energy processing equipment. By minimizing the transmission of vibration and stress to critical components, it enhances safety and operational stability. Its ability to handle thermal fluctuations, accommodate pipeline movements, and resist chemical attack makes it indispensable in maintaining system efficiency and reducing maintenance demands.
Songjiangflex’s CC Type Rubber Expansion Joint is backed by years of expertise in rubber expansion joint manufacturing. Every product undergoes strict quality control procedures to meet international industry standards and ensure reliable performance in the field. Customized options are available to meet specific project requirements, ensuring that customers receive a tailored solution for their industrial needs. Additionally, Songjiangflex provides rapid turnaround times for urgent projects, ensuring minimal disruption to operations. With its proven track record in heavy industrial applications, this expansion joint has become a trusted choice for facilities around the world, delivering unmatched durability, reliability, and value.

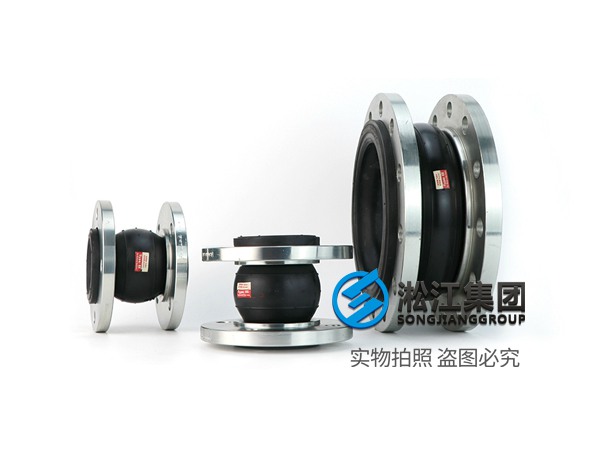

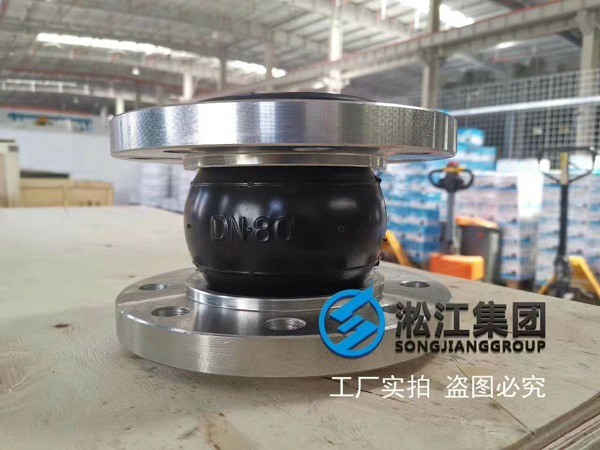

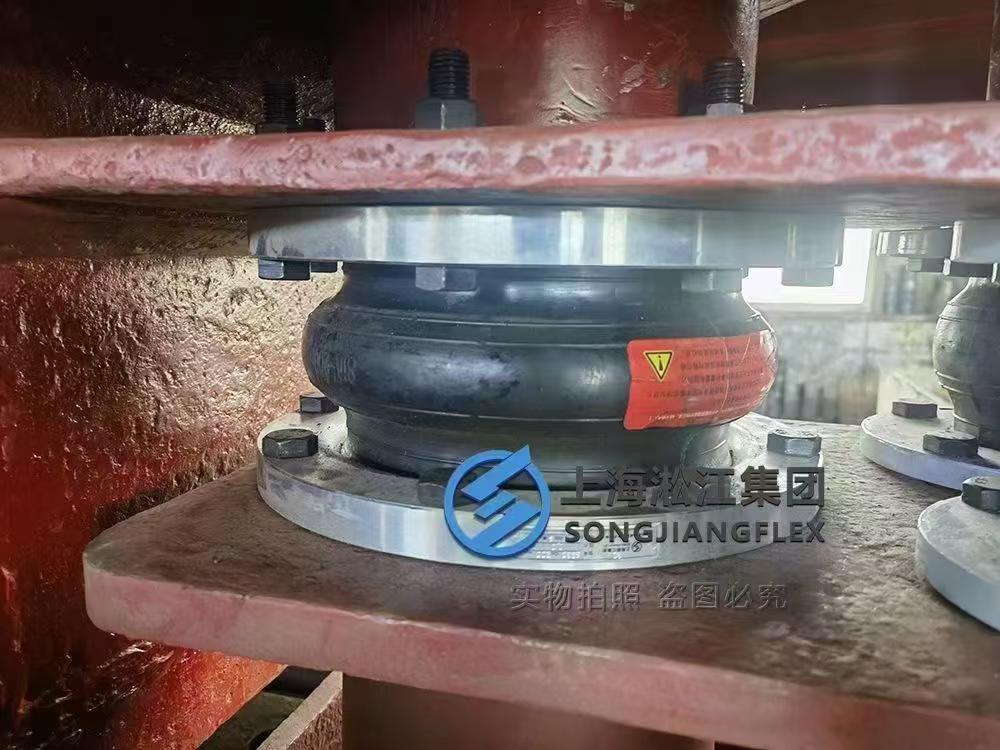

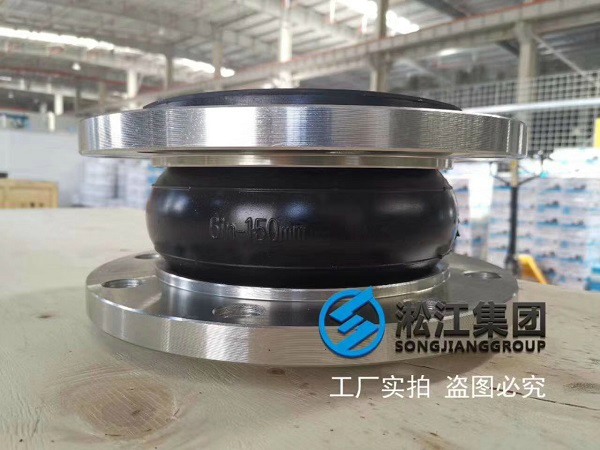

CC Type RubberExpansion Joint forContinuous CastingEquipment– Product Photo
The primary function of a DN350 HVAC system bellows expansion joint is to absorb pipeline displacement caused by temperature changes, mechanical vibration, and installation misalignment in large-diameter HVAC piping systems. In central air conditioning and chilled water circulation systems, pipelines experience significant thermal expansion and contraction due to fluctuating operating temperatures.
Without proper compensation devices, these movements generate stress on pipes, pumps, valves, and equipment connections. Over time, this stress may cause pipe deformation, flange leakage, equipment misalignment, and even system failure. A bellows expansion joint effectively absorbs this displacement by providing flexibility within the pipeline.
The DN350 bellows expansion joint is designed to compensate for several types of movement, including axial compression and extension, lateral displacement, and angular deflection. Its stainless steel bellows structure acts like a flexible spring element that deforms elastically under pipeline movement, allowing the system to operate safely without transferring excessive loads to connected equipment.
In HVAC systems, these expansion joints also help isolate vibration generated by pumps, compressors, chillers, and air handling units. By reducing vibration transmission through pipelines, the expansion joint protects mechanical components and reduces structural noise.
For large HVAC pipelines such as DN350 systems, expansion joints are critical because the larger the pipe diameter, the greater the thermal expansion force. Therefore, properly designed bellows expansion joints play an essential role in ensuring long-term reliability, system stability, and reduced maintenance costs in HVAC infrastructure.
Bellows expansion joints are essential in large HVAC pipelines because thermal expansion forces increase dramatically as pipe diameter and pipeline length grow. In DN350 pipelines used in central air conditioning systems, chilled water distribution networks, or district cooling plants, the thermal expansion generated during system operation can be substantial.
When HVAC systems start up, chilled water or hot water flows through the pipeline, causing temperature fluctuations that lead to pipe expansion or contraction. For example, even a moderate temperature change can result in several millimeters of pipeline movement over long pipe sections.
If these movements are not properly absorbed, the resulting stress can damage pipeline supports, distort pipe alignment, and impose excessive loads on pumps and valves. In severe cases, this stress may cause flange leakage or cracking of pipeline welds.
Bellows expansion joints solve this problem by introducing flexibility into rigid pipeline systems. The stainless steel bellows element is designed to compress, extend, or bend according to the movement generated in the system. This allows pipelines to move naturally without transmitting harmful stress to surrounding components.
In addition to thermal expansion, HVAC systems also generate vibration from mechanical equipment such as pumps and compressors. Expansion joints help isolate these vibrations, protecting both piping structures and connected machinery.
Therefore, installing DN350 bellows expansion joints is a fundamental engineering solution for maintaining operational safety, reducing structural stress, and extending the service life of HVAC systems.
A DN350 HVAC bellows expansion joint is designed to absorb thermal expansion, vibration, and mechanical displacement in large HVAC pipeline systems. When heating or cooling systems operate, temperature changes cause pipelines to expand or contract. Without proper compensation, these movements can generate excessive stress that may damage pipes, valves, or equipment.
The stainless steel bellows structure allows the expansion joint to absorb axial, lateral, and angular movement while maintaining system pressure integrity. This helps protect pumps, chillers, and compressors from vibration and mechanical stress.
DN350 bellows expansion joints are widely used in:
central air conditioning systems
chilled water pipelines
industrial cooling systems
power plant HVAC systems
large commercial building mechanical rooms
By reducing vibration and compensating thermal movement, these expansion joints significantly improve system reliability, extend pipeline service life, and reduce maintenance costs.
Large HVAC pipelines such as DN350 systems experience significant thermal expansion due to temperature variations between chilled water and heated water operations. When pipes expand without compensation, large mechanical stresses are transferred to pipe supports, pumps, and connected equipment.
Bellows expansion joints act as flexible connectors that absorb these stresses and prevent structural damage. They protect the entire piping system by allowing controlled movement while maintaining leak-free operation.
In HVAC systems, expansion joints help achieve:
thermal expansion compensation
vibration isolation
noise reduction
equipment protection
improved pipeline stability
Without expansion joints, long pipeline networks could suffer from pipe deformation, flange leakage, or structural failure. Therefore, bellows expansion joints are considered critical components in modern HVAC engineering.
DN350 HVAC bellows expansion joints are typically manufactured using high-quality stainless steel materials to ensure durability and corrosion resistance.
The most commonly used materials include:
SUS304 Stainless Steel
Widely used in standard HVAC systems because it provides excellent corrosion resistance and mechanical strength. It performs well in chilled water and cooling water systems.
SUS316 or SUS316L Stainless Steel
These materials offer enhanced corrosion resistance, especially in environments containing chlorides or aggressive chemicals. They are commonly used in industrial or marine HVAC systems.
Carbon Steel Flanges
Flanges are usually made from carbon steel because they provide high strength and cost efficiency for large pipeline systems.
Material selection depends on several factors such as:
operating temperature
system pressure
fluid composition
environmental conditions
Choosing the correct material ensures long-term performance and prevents corrosion or fatigue damage.

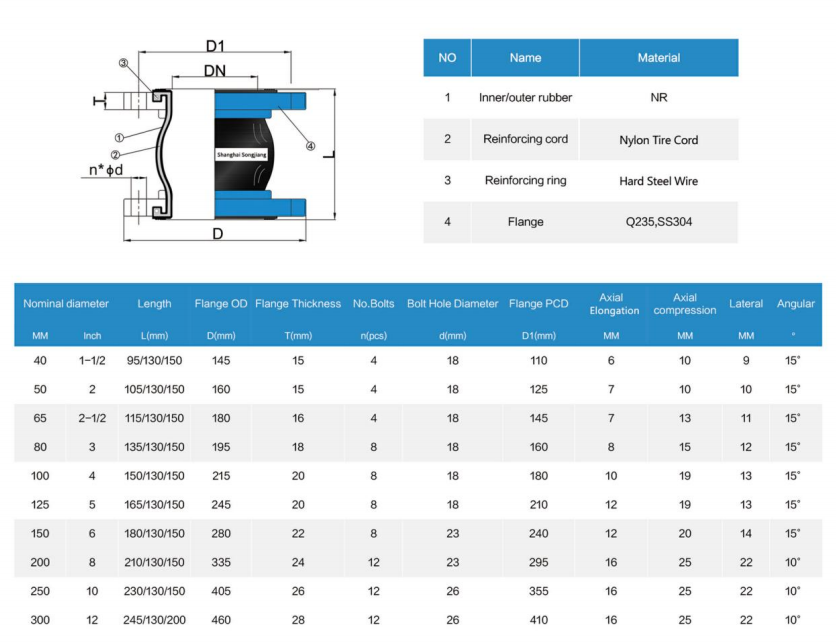

Datasheet for CC Type RubberExpansion Joint forContinuous CastingEquipment

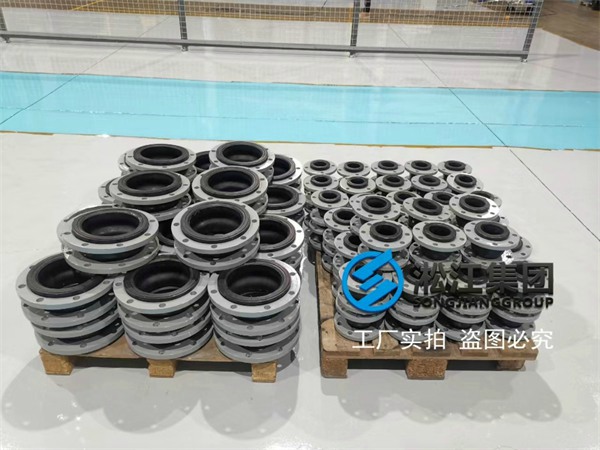

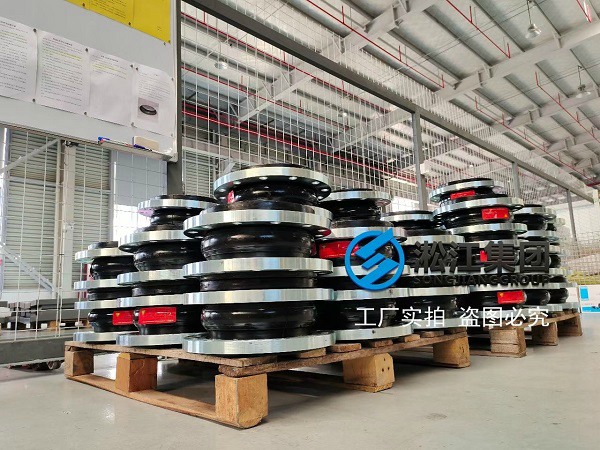

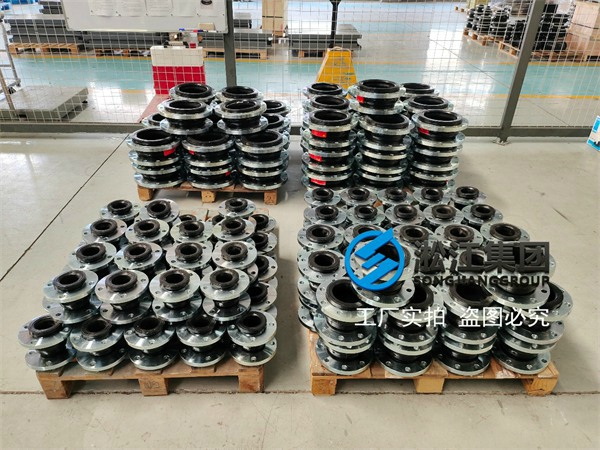

Daily Production Showcase from Factory
Advantages of Using CC Type Rubber Expansion Joint for Continuous Casting Equipment
Continuous casting systems in steel mills operate under extremely demanding conditions, including high temperature fluctuations, mechanical vibration, abrasive media, and continuous production cycles. In such environments, piping systems and connected equipment are constantly exposed to stress caused by thermal expansion, hydraulic shock, and structural movement.
The CC-type rubber expansion joint is specifically designed to meet these challenges in continuous casting (CC) applications, providing a flexible, durable, and highly efficient connection solution.
1. Excellent Vibration and Shock Absorption
Continuous casting equipment is typically connected to pumps, cooling systems, and hydraulic circuits that generate continuous vibration and pressure pulsation.
CC-type rubber expansion joints effectively absorb:
- Mechanical vibration from rotating equipment
- Hydraulic shock and pressure surges
- Structural vibration from steel processing operations
This significantly reduces stress transmission to pipelines, supports, and connected machinery, improving overall system stability.
2. Compensation for Multi-Directional Movement
During operation, continuous casting lines experience thermal expansion, equipment shifting, and alignment deviations.
Rubber expansion joints provide flexible compensation in multiple directions:
- Axial compression and extension
- Lateral displacement
- Angular deflection
This flexibility prevents pipe deformation, flange damage, and weld cracking caused by rigid connections.
3. High Thermal Stability and Temperature Adaptability
Steel continuous casting processes involve high-temperature environments, especially near molds, cooling zones, and hot metal transfer systems.
Depending on material selection (EPDM, NBR, or heat-resistant compounds), CC-type rubber joints can:
- Withstand elevated operating temperatures
- Maintain elasticity under thermal cycling
- Prevent hardening or cracking over time
This ensures long-term reliability in harsh thermal conditions.
4. Superior Corrosion and Wear Resistance
Cooling water systems in steel plants often contain impurities, scale, and chemical additives.
High-quality rubber materials provide strong resistance against:
- Cooling water corrosion
- Mild acids and alkalis
- Abrasive particles in circulation systems
This helps extend service life and reduces maintenance frequency.
5. Protection of Critical Equipment and Piping Systems
By absorbing stress and isolating vibration, CC-type rubber expansion joints help protect:
- Pumps and compressors
- Heat exchangers
- Cooling water pipelines
- Continuous casting machine components
This reduces the risk of fatigue failure, leakage, and unexpected shutdowns.
6. Improved Operational Safety and Reliability
In steel production environments, safety is critical. Pipe rupture or flange failure can cause severe operational risks.
CC-type rubber expansion joints enhance safety by:
- Reducing mechanical overload on piping systems
- Preventing fatigue-related failures
- Minimizing leakage risks under dynamic conditions
This contributes to safer and more stable production processes.
7. Easy Installation, Alignment Tolerance, and Maintenance
Compared to rigid steel connectors, rubber expansion joints offer significant practical advantages:
- Simple installation and replacement
- Reduced need for perfect alignment during assembly
- Lower downtime during maintenance
- Lightweight structure for easier handling
These features help reduce installation costs and improve construction efficiency.
8. Cost-Effective Lifecycle Performance
Although initial cost may vary depending on design and material, CC-type rubber expansion joints provide excellent long-term value by:
- Extending pipeline and equipment lifespan
- Reducing maintenance and repair frequency
- Lowering downtime costs
- Improving overall plant efficiency
Conclusion
CC-type rubber expansion joints are an essential component in modern continuous casting systems. By combining flexibility, durability, and vibration isolation performance, they ensure stable operation under extreme industrial conditions. Their use significantly improves equipment reliability, reduces maintenance costs, and enhances overall production safety in steel mills.
