KIT-SB Seres Rubber Pad
Height Adjustable for Versatile Industrial Applications

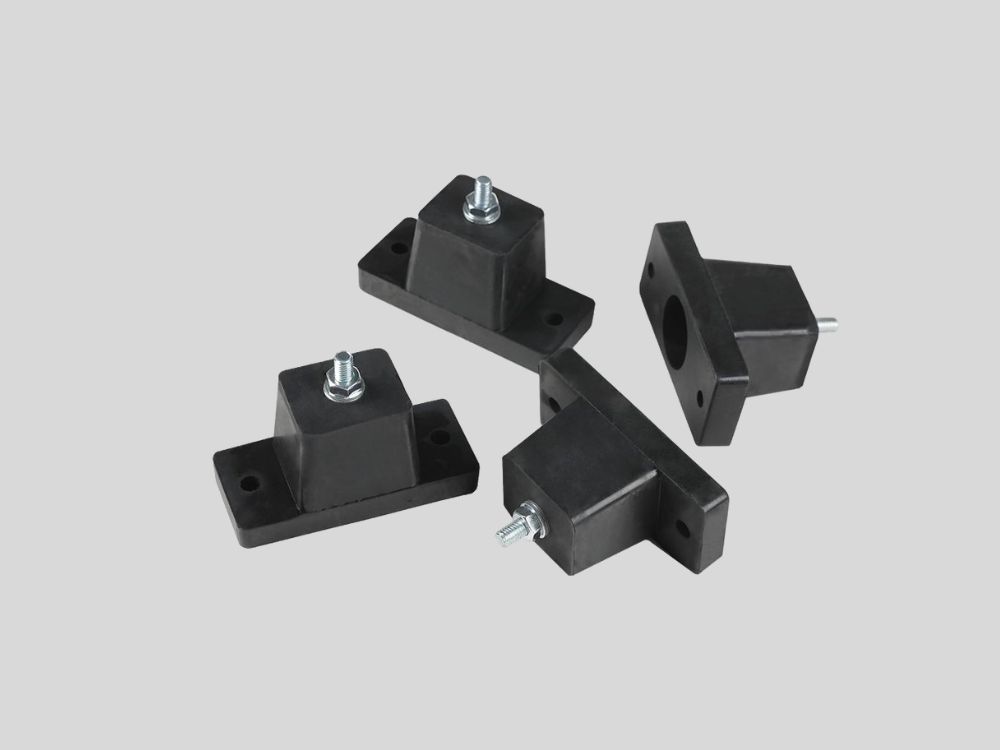

KIT-SB Rubber mounting Vibration lsolator
The natural frequency of the KIT-SB isolator is determined by the rubber hardness, isolator geometry, and the applied load. Typically, these isolators are designed with a low natural frequency to isolate machinery vibrations that occur at higher frequencies. Choosing an isolator with the correct natural frequency is critical because if the operational vibration frequency is close to the isolator’s natural frequency, resonance may occur, amplifying vibrations rather than reducing them. By selecting an isolator with a natural frequency well below the excitation frequency, the KIT-SB ensures optimal vibration attenuation, protects equipment components from stress, reduces noise, and improves overall operational stability.
The damping coefficient reflects the isolator’s ability to dissipate vibrational energy. KIT-SB Rubber Mounting Vibration Isolators are engineered with a balanced damping ratio, providing sufficient energy absorption to minimize oscillations without making the system too stiff. Proper damping not only reduces transmitted vibrations and noise but also prevents excessive equipment movement, protects sensitive components, and prolongs service life. In applications with intermittent or shock loading, the damping ensures that vibrations are quickly absorbed, preventing secondary oscillations that could affect operational accuracy or safety.
The installation method has a direct impact on the isolator’s performance. For maximum efficiency, KIT-SB isolators should be installed on level surfaces, aligned correctly with the load direction, and securely fastened to both the equipment and the supporting base. Improper installation—such as uneven mounting, misalignment, over-tightening, or insufficient load distribution—can shift the natural frequency, reduce isolation efficiency, and create uneven stress on the isolators. Correct installation ensures that each isolator carries the intended load, maintains the designed vibration damping characteristics, and delivers consistent and reliable vibration isolation, even under heavy-duty or dynamic operating conditions.
KIT-SB Rubber Mounting Vibration Isolator Application Cases
Case 1: Pump System
Vibration Isolation
Scenario: Industrial pumps generate continuous vibration during operation, which can affect equipment stability and pipe connections.
Solution: Install KIT-SB rubber mounts under the pump base to absorb operational vibrations.
Result: Significant reduction in vibration amplitude, lower noise levels, and over 30% extended lifespan of pumps and pipelines.
Case 2: Generator Set Isolation
Scenario: Diesel generators produce impact vibrations during startup and operation, potentially affecting nearby equipment and building structures.
Solution: Place KIT-SB rubber isolators between the generator base and the floor.
Result: Vibration transmission reduced by over 50%, noise minimized, and generator stability and operational safety improved.

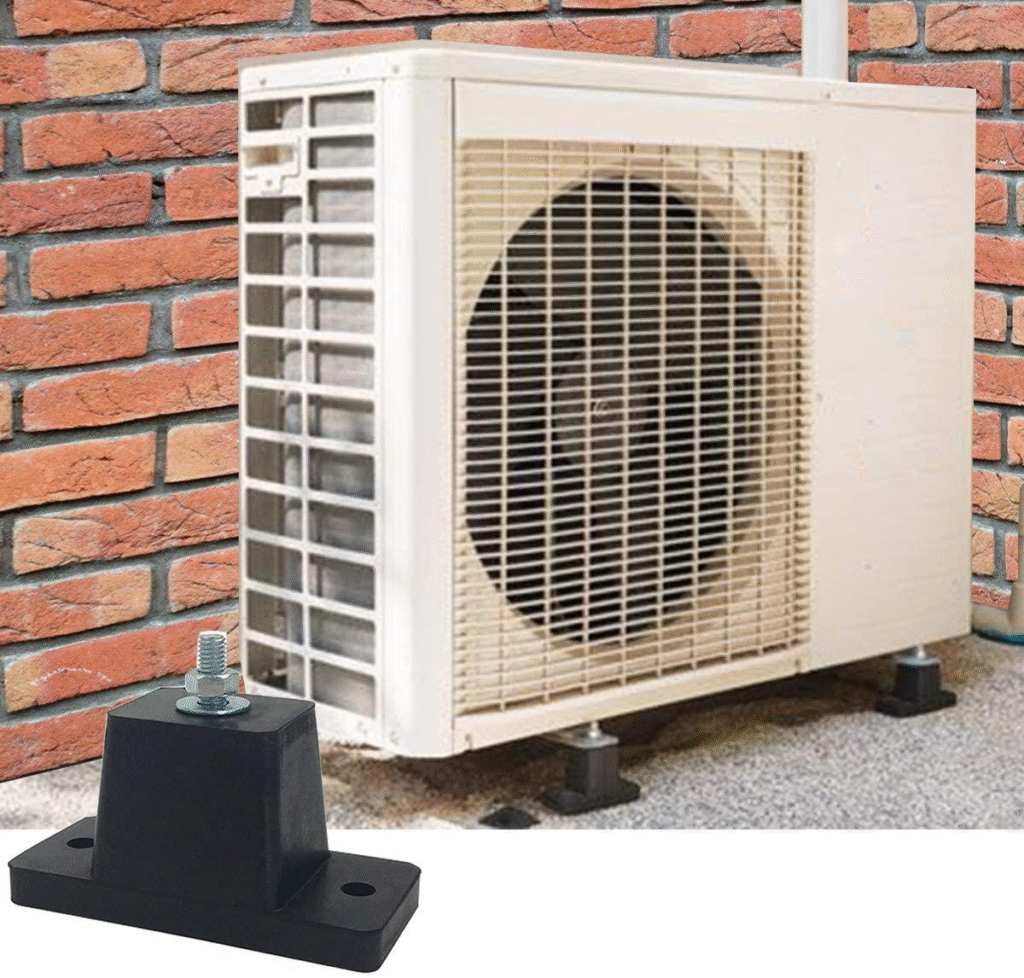

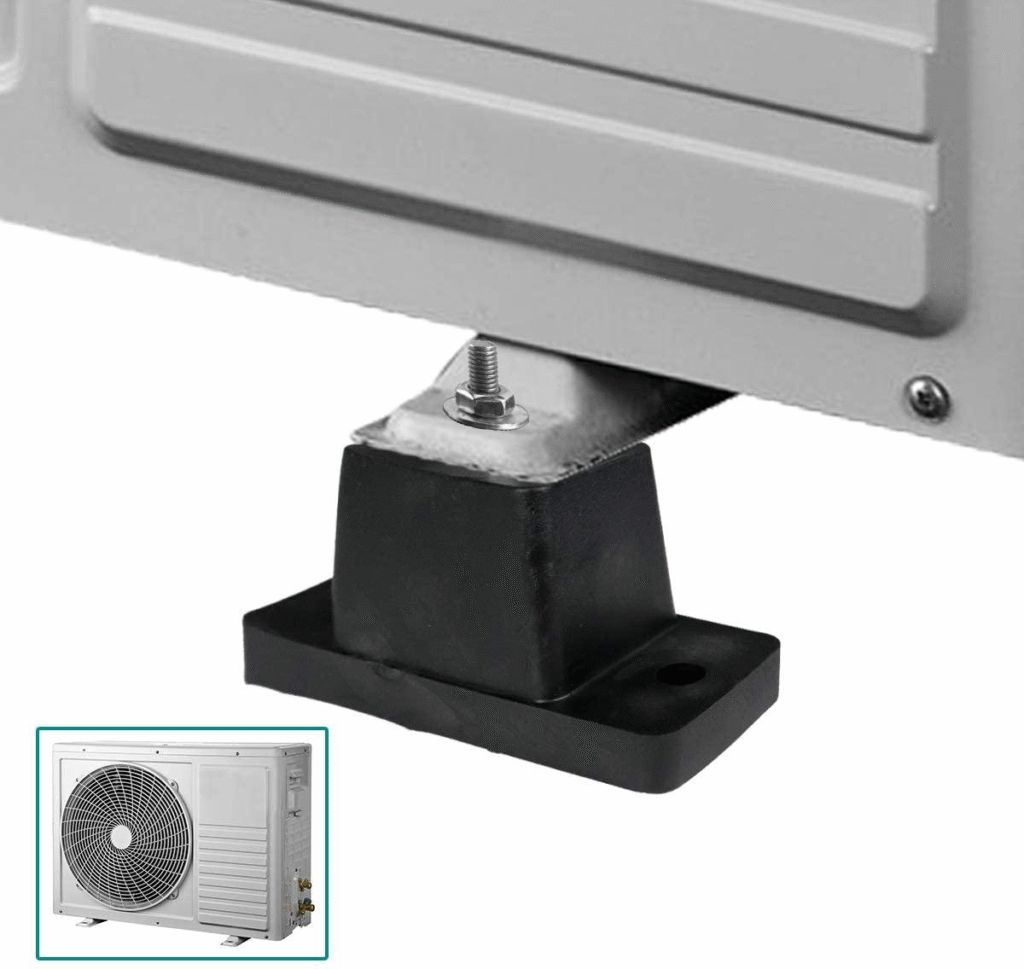

Case 3: HVAC and Air Conditioning Systems
Scenario: Large central air conditioning units and HVAC fans generate low-frequency vibrations and structural noise during high-speed operation.
Solution: Install KIT-SB mounts at fan bases and pipe connections to isolate vibrations from the building structure.
Result: Structural resonance reduced, noise levels lowered, and indoor comfort significantly improved.
Case 4: Marine Equipment Vibration Control
Scenario: Pumps, generators, and steering equipment on ships produce vibrations that can affect hull stability and equipment longevity.
Solution: Install KIT-SB rubber mounts under critical equipment to isolate vibrations.
Result: Reduced hull vibrations, lower equipment wear, and improved overall vessel stability and operational safety.

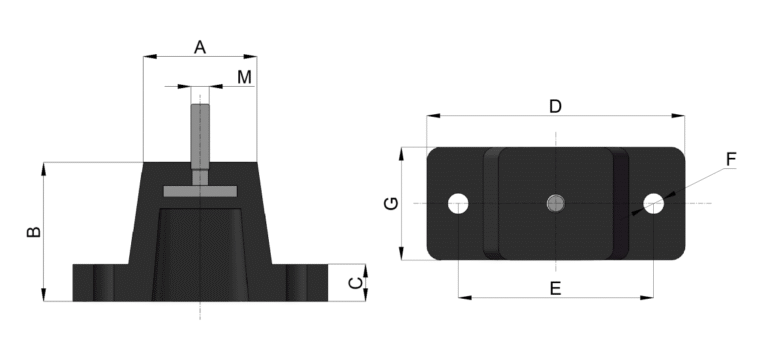

Data of KIT-SB Rubber mounting Vibration lsolator

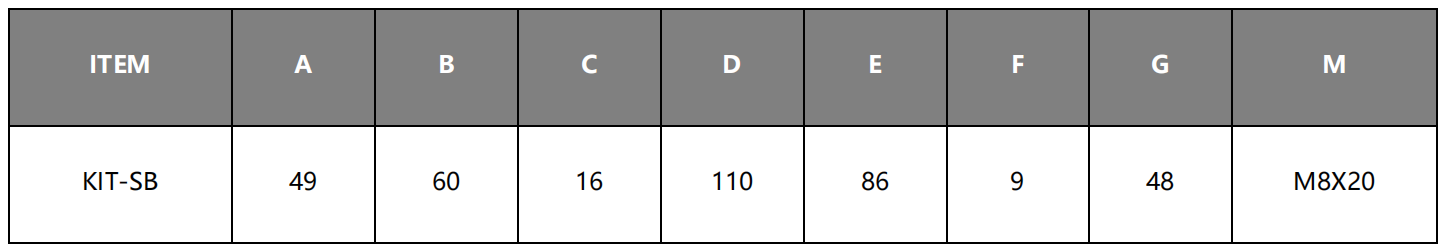

Parameter Table of KIT-SB Rubber mounting Vibration lsolator
If you like this ZAL Series Adjustment Rubber Feet but have any concerns or are not fully satisfied with certain aspects, feel free to contact us with your feedback. We can customize it by creating a new mold based on your specific requirements. Our professional engineers will provide a free design service!
For any inquiries, please contact us at: [email protected]
