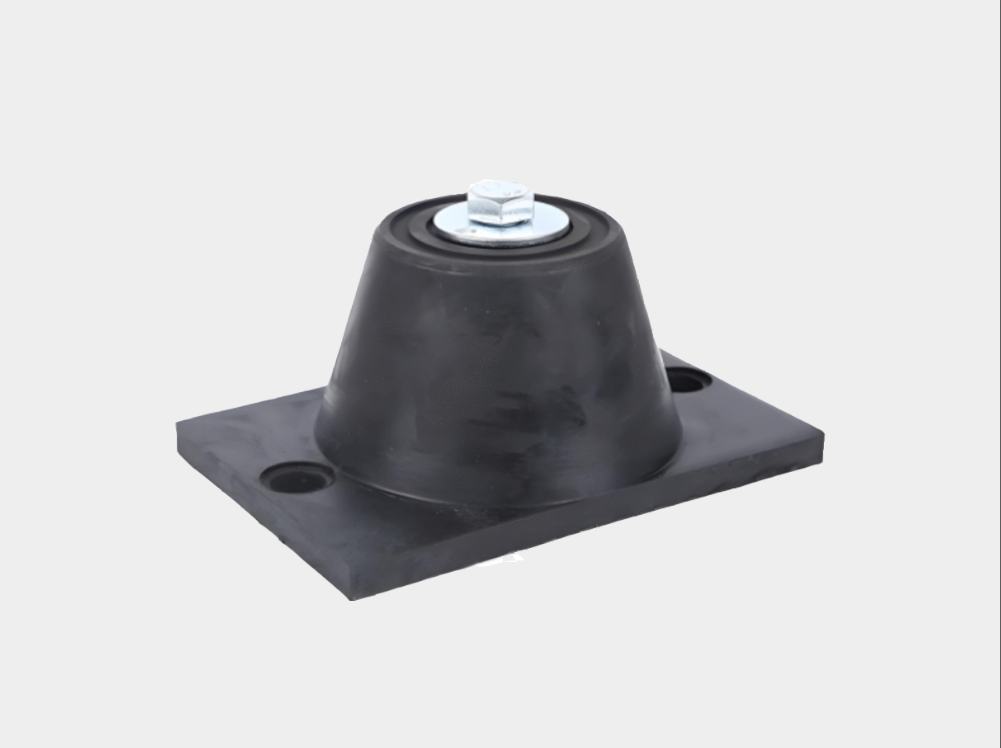

JD Type Rubber Vibration lsolator
Height Adjustable for Versatile Industrial Applications
JD Type Rubber Vibration lsolator
The JD Type Rubber Vibration Isolator offers significant advantages in key performance areas, making it suitable for various industrial vibration control needs. The main technical advantages are:
Excellent Vibration Isolation Performance: The JD Type isolator uses a composite structure of natural rubber and metal. Natural rubber, known for its elasticity, efficiently absorbs mechanical vibrations, while the metal part provides additional structural support, enhancing the isolator's load-bearing capacity. The high elasticity of rubber enables excellent damping across a wide range of frequencies, especially in absorbing low-frequency vibrations. Whether used in fans, pumps, or heavy machinery, the JD Type isolator effectively blocks the transmission of high- and low-frequency vibrations, preventing negative effects on surrounding structures and equipment.
High Corrosion Resistance: The metal parts of the isolator are coated with rubber, which offers excellent corrosion resistance, enabling it to withstand moisture, chemicals, and extreme environmental conditions. This ensures long-term, stable performance even in harsh industrial environments. For example, in chemical plants, mining sites, or coastal areas, where conventional metal or rubber isolators may be prone to corrosion, the JD Type isolator remains highly durable and effective.
Low Natural Frequency Design: The isolator is designed with a low natural frequency, making it particularly effective for isolating low-frequency vibrations. Low-frequency vibrations are commonly produced by equipment like fans, pumps, and engines, and the JD Type isolator effectively isolates these vibrations, preventing them from affecting the foundation, pipelines, or surrounding structures. The ability to control low-frequency vibrations not only enhances equipment stability but also helps reduce wear and tear, extending the service life of machinery.
Compact Design: The JD Type isolator has a compact design, making it ideal for applications with limited space. Many industrial systems, particularly fans and pumps, face challenges in space-constrained environments. The small size of the JD Type isolator ensures it can be easily installed in such spaces without compromising its performance. Its compact form factor makes it an ideal choice for installations where space is at a premium.
High Lateral Stiffness and Low Dynamic Coefficient: The isolator is designed with high lateral stiffness to prevent excessive deformation under heavy mechanical loads, ensuring stable vibration isolation performance. The low dynamic coefficient ensures that vibrations are quickly and efficiently damped, preventing unnecessary displacement or vibration. This design not only improves the overall system stability but also reduces energy losses and enhances operational efficiency.
The JD Type Rubber Vibration Isolator performs exceptionally well in extreme environmental conditions. Here’s how it is suited for various challenging environments:
High Moisture and Corrosive Environments: The rubber coating on the metal components provides excellent protection against moisture, chemicals, and corrosive elements. This makes the JD Type isolator ideal for use in environments such as chemical plants, offshore platforms, and mining operations, where conventional isolators may fail due to corrosion.
Temperature Extremes: The JD Type isolator is designed to withstand extreme temperatures. The rubber material is specially formulated to maintain its elasticity and damping properties in both high and low temperatures. Whether in high-temperature industrial environments (such as metal smelting plants) or in extremely cold conditions (such as equipment in cold regions), the JD Type isolator maintains optimal performance even in the most demanding temperature conditions.
Chemical Resistance: The rubber material in the JD Type isolator can be customized according to application needs to enhance its resistance to various chemicals. Custom formulations ensure that the isolator can withstand exposure to oil, acids, alkalis, solvents, and other aggressive substances. This makes the JD Type isolator ideal for industries such as petrochemical, pharmaceutical, and food processing, where the equipment is exposed to harsh chemicals.
Long-Term Reliability: The JD Type isolator is built with high durability materials and advanced manufacturing processes to ensure its long-term reliability in harsh environments. For applications in particularly severe conditions, the isolator's material can be tailored to enhance its resistance to weathering and chemical degradation, ensuring its reliability over time.
Proper installation of the JD Type Rubber Vibration Isolator is critical to ensuring its maximum performance. Here are key installation guidelines:
Alignment with Vibration Direction: The isolator should be correctly aligned with the direction of vibration to maximize its vibration isolation effect. Typically, the isolator should be installed between the equipment base and the supporting structure to ensure the vibrations are effectively absorbed and isolated. Proper alignment with the vibration direction ensures optimal damping and reduces transmission to supporting structures.
Secure Fixing: The isolator must be securely fixed during installation to prevent any movement or misalignment during equipment operation. Proper tools and fasteners should be used to ensure that the isolator is firmly attached. Any loose connections or improper installation can significantly reduce the isolator’s effectiveness.
Gap Control: It is essential to ensure that there are no unnecessary gaps between the isolator and the equipment or supporting structure. Gaps can reduce the efficiency of vibration isolation and adversely affect performance. The isolator should fit snugly without gaps to maintain its optimal damping function.
Post-Installation Inspection: After installation, the isolator should be thoroughly inspected to ensure proper alignment and secure fastening. This is particularly important for equipment that experiences high loads and vibrations. Any misalignment or displacement of the isolator could diminish its vibration isolation capabilities.
Regular Maintenance: To ensure the JD Type isolator continues to perform optimally, periodic inspections are recommended, especially in high-load and harsh environmental applications. Checking the wear of the rubber components and the condition of the metal parts (e.g., rubber coating) will help identify any potential issues before they affect performance. Regular maintenance ensures the isolator’s longevity and continued efficiency.
By following these installation and maintenance guidelines, the JD Type Rubber Vibration Isolator will provide long-lasting and effective vibration isolation, ensuring reliable operation of machinery in various industrial settings.

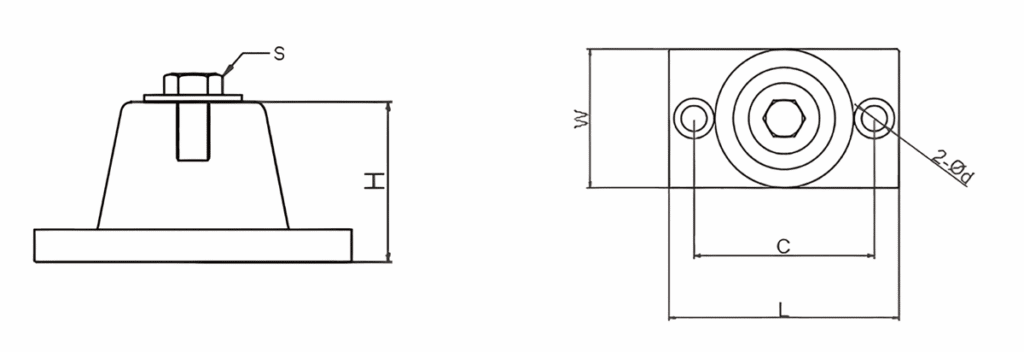

Data of JD Type Rubber Vibration Isolator

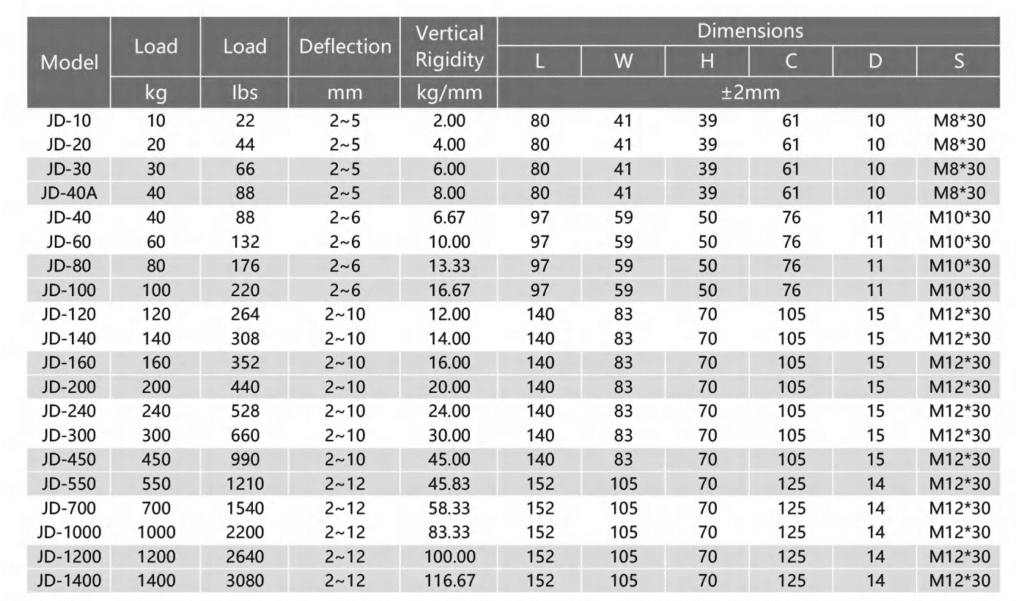

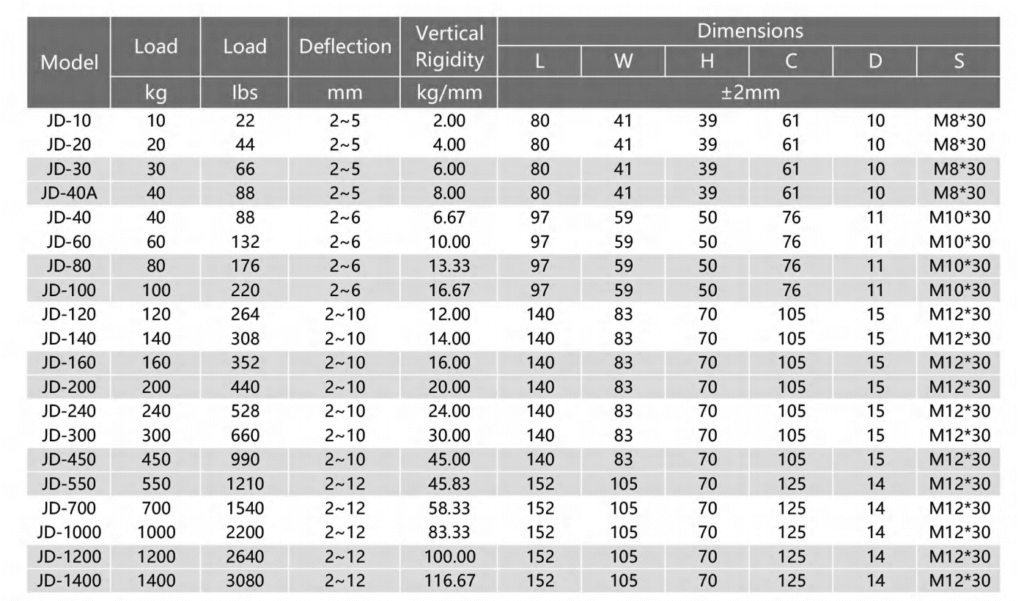

Parameter Table of JD Type Rubber Vibration Isolator
