EH Series Two Piece Mounts
Durable and Versatile Support Solutions for Counters and Benches

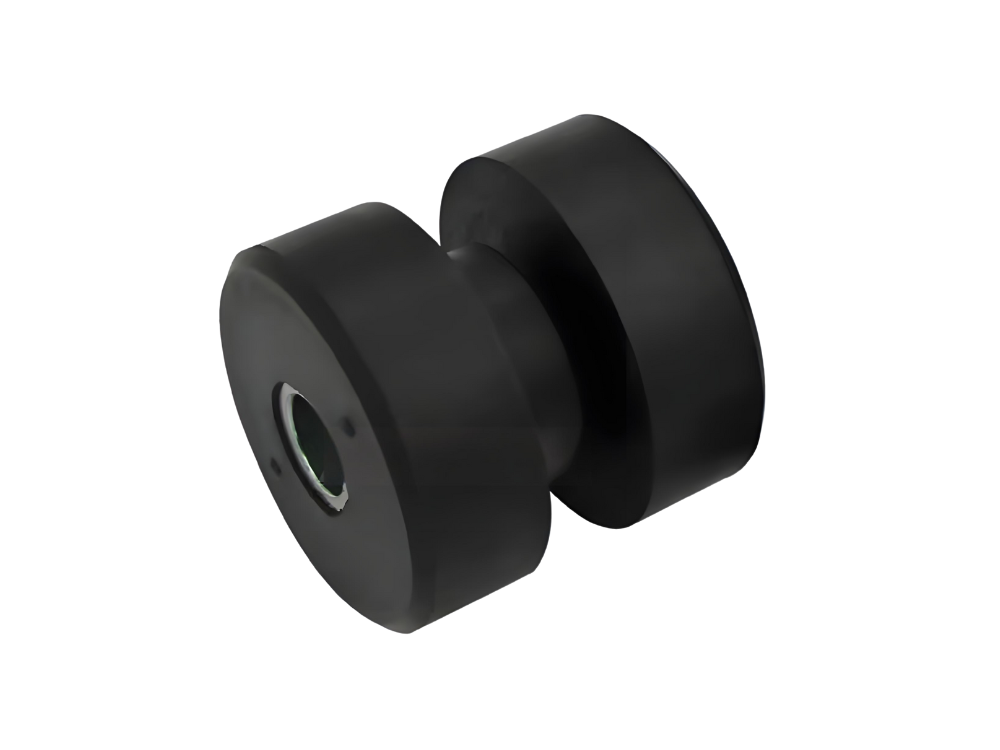

EH Series Two Piece Mounts
EH Series Two Piece Mounts are purpose-built to perform under demanding mobile conditions where equipment is exposed to frequent dynamic loads, high-frequency vibrations, and sudden impact forces. One of the most significant advantages is their ability to restrict vertical motion in both directions—upward and downward—ensuring that sensitive machinery does not experience bouncing or lifting during operation or transport.
The mounts also offer outstanding horizontal stability, which is critical for preventing lateral shifts that can misalign components or loosen structural joints. This dual-axis motion control enhances system stability, reduces vibration transmission to the supporting structure, and minimizes noise. As a result, the equipment maintains better alignment, runs more quietly, and requires less frequent maintenance. For mobile systems like generator sets, HVAC units on vehicles, or military equipment, this translates into longer service life and improved operational reliability under real-world stress.
EH Series Two Piece Mounts are essential in a wide range of high-performance industrial applications where stability, shock absorption, and precise vibration control are crucial. Typical use cases include:
Mobile generator sets and compressor units, where engine vibration and road shocks must be isolated to protect sensitive components.
Transport vehicles (such as trucks, buses, and military equipment) that require mounts capable of handling both engine-generated and road-induced vibration.
Mobile HVAC systems and onboard air-handling units, where vibration isolation improves thermal system performance and prevents mechanical noise.
Marine and offshore platforms, where equipment is subject to both continuous low-frequency sway and high-impact forces from motion or wave impact.
In all of these sectors, EH Series mounts are chosen for their robust design, ability to sustain heavy loads, and superior damping characteristics, ensuring stable performance even in aggressive operational environments.
The dual-axis motion control feature in EH Series Two Piece Mounts plays a pivotal role in improving the overall structural integrity and life expectancy of the supported equipment. By effectively limiting vertical motion in both directions, the mounts prevent common vibration-related issues such as component fatigue, bolt loosening, and structural wear.
At the same time, strong horizontal restraint ensures that the equipment remains properly aligned during shocks, sudden starts/stops, or continuous operation in mobile environments. This prevents the gradual degradation of components caused by shifting or vibration-induced friction.
Additionally, the use of durable materials—often with a combination of metal inserts and high-grade rubber—provides high load-bearing capacity while maintaining flexibility for energy absorption. The result is a reliable mounting solution that not only improves operational efficiency but also significantly reduces downtime and repair costs, particularly in mission-critical or remote applications.

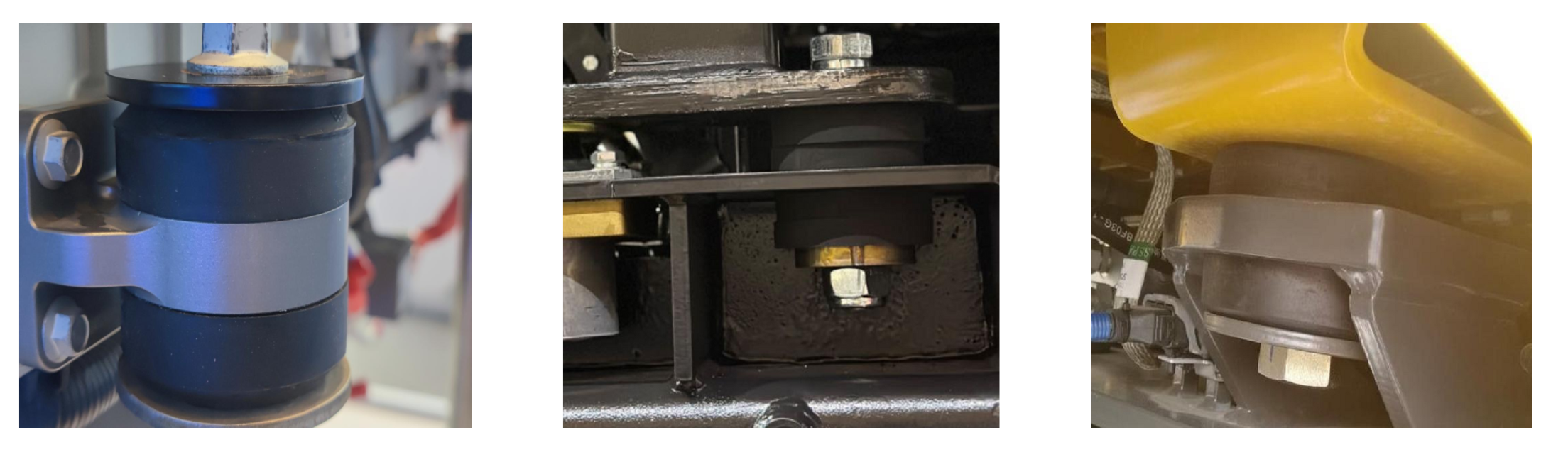

Case Application Scenarios of EH Type Two-Piece Mounts

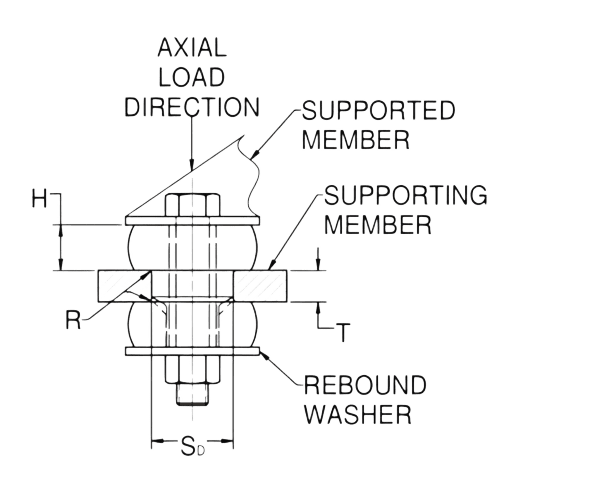

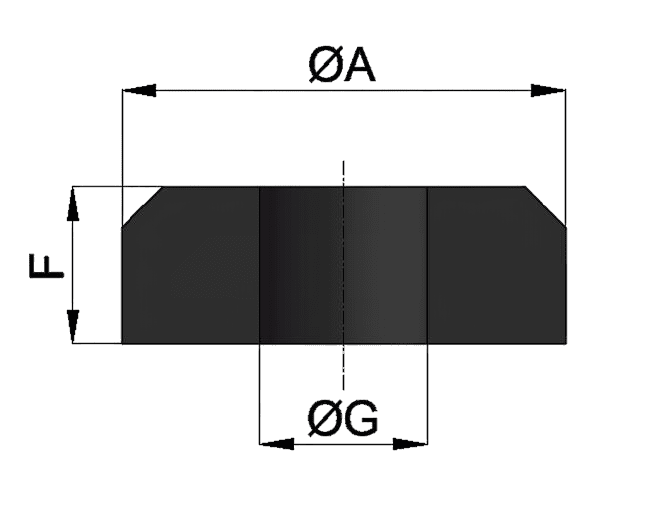

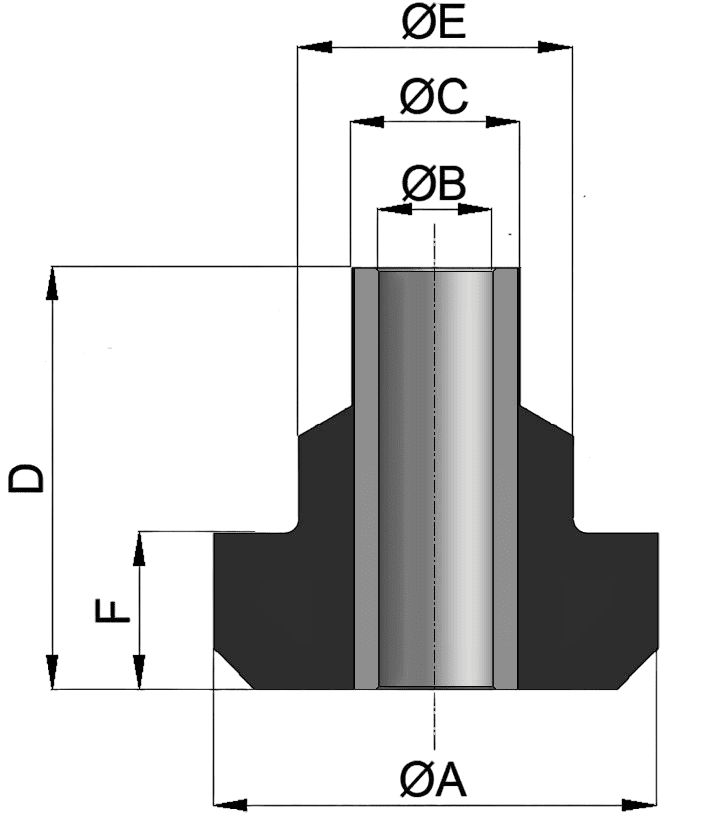

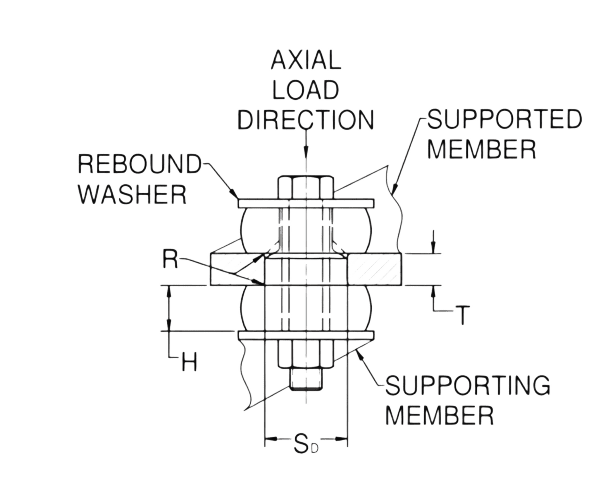

Data of EH Type Two-Piece Mounts

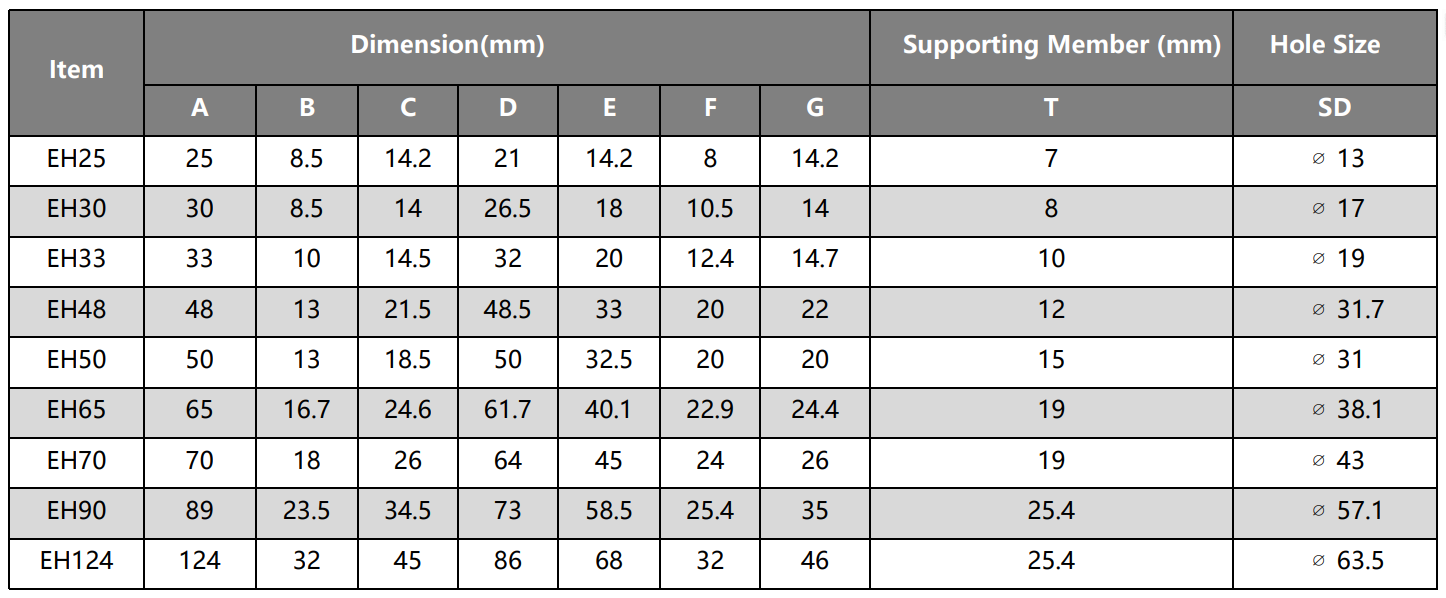

Parameter Table of EH Type Two-Piece Mounts
If you like this EH Type Two-Piece Mounts but have any concerns or are not fully satisfied with certain aspects, feel free to contact us with your feedback. We can customize it by creating a new mold based on your specific requirements. Our professional engineers will provide a free design service!
For any inquiries, please contact us at: [email protected]
