DW Type Drinking Water Rubber Expansion Joint
Flexible Strength, Reliable Safety
DW Type Drinking Water Rubber Expansion Joint – Product Introduction
The DW Type Drinking Water Rubber Expansion Joint is designed specifically for use in drinking water systems, offering reliable performance and long-lasting durability. This expansion joint is manufactured with high-quality rubber materials that meet the standards for potable water, ensuring safety and compliance with health regulations.
Key Features:
Safe for Drinking Water: Made from non-toxic, high-quality rubber compounds, this expansion joint is certified for use in drinking water systems.
Excellent Flexibility: The flexible design absorbs movement, vibrations, and thermal expansion, minimizing stress on pipes and preventing damage to the system.
Durable Construction: With resistance to aging, ozone, and weather conditions, the DW Type expansion joint ensures a long service life, even in demanding environments.
Leak-Free Sealing: The joint is engineered to provide a secure and leak-free connection, reducing the risk of water loss and maintaining system efficiency.
Easy Installation: Designed for easy installation and maintenance, this product offers a cost-effective solution for drinking water pipeline systems.
Applications:
Water Treatment Plants
Drinking Water Distribution Systems
Pumps and Valves in Water Supply
Residential and Commercial Plumbing
The DW Type Drinking Water Rubber Expansion Joint is the ideal choice for ensuring safe, efficient, and durable connections in drinking water systems. With its superior design and materials, it helps maintain the integrity of the piping system while safeguarding the quality of the water supply.

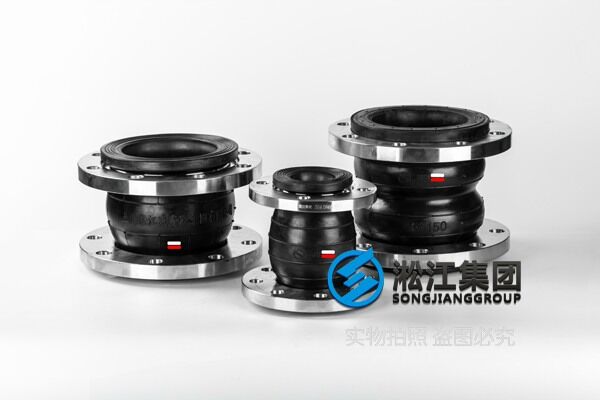

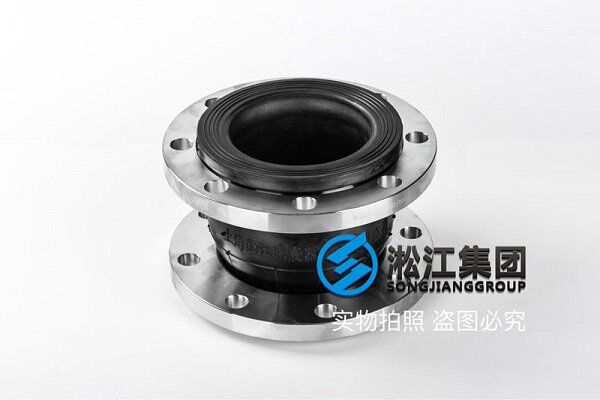

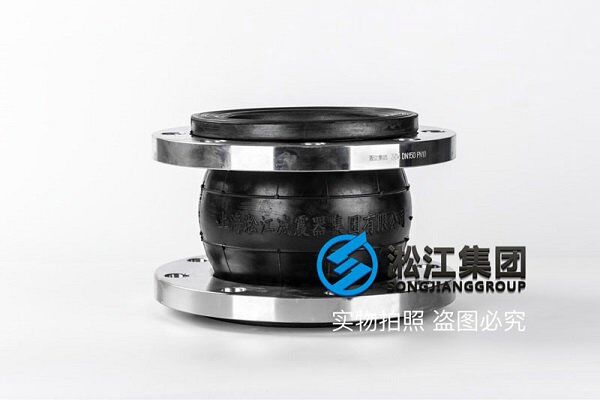

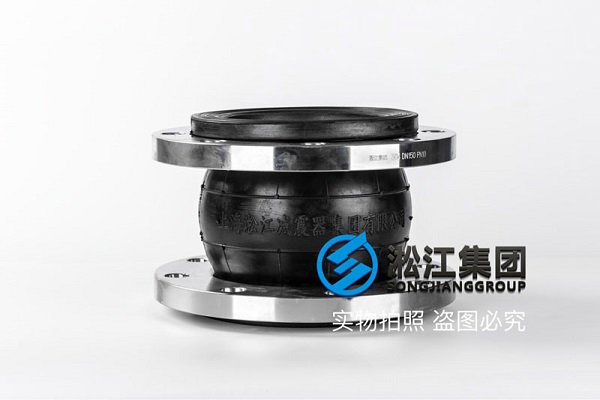

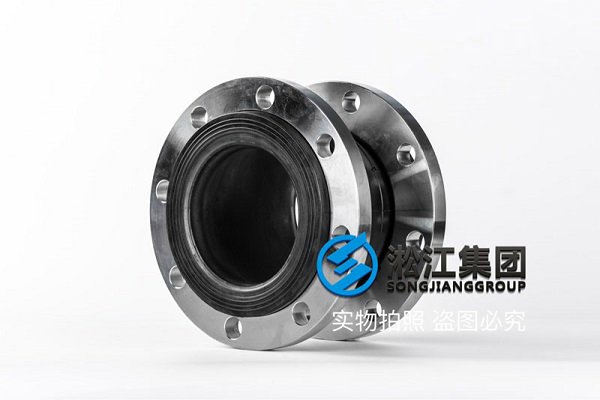

DW Type Drinking Water Rubber Expansion Joint – Product Photo
The DW Type Drinking Water Rubber Expansion Joint is an essential component in drinking water distribution systems. It serves as a flexible connector between two pipeline sections, designed specifically to absorb vibrations, thermal expansion, and axial movements in the pipework. This expansion joint plays a critical role in maintaining the integrity of water supply systems by accommodating the natural movement of pipes due to changes in temperature, pressure, or external forces.
Vibration Absorption: In many water supply systems, pumps, valves, and other mechanical equipment generate vibrations that can be transferred through the piping. Over time, these vibrations can cause stress on the pipeline joints and connections, leading to damage or leakage. The DW Type expansion joint effectively absorbs these vibrations, reducing the risk of pipe damage and ensuring a smoother, more efficient water flow.
Thermal Expansion: As water is pumped through pipelines, changes in temperature can cause the pipes to expand and contract. Without a flexible joint, the stress from thermal expansion can cause leaks or even pipe bursts. The DW Type Drinking Water Rubber Expansion Joint is designed to absorb these movements, ensuring that the pipes do not buckle or break under pressure. It helps to maintain the structural integrity of the system and prevents premature wear and tear.
Pipe Movement Compensation: Pipelines are subject to various forms of movement due to ground settling, seismic activity, and other external forces. These movements can cause misalignment, stresses, and ultimately system failures. The DW Type expansion joint compensates for these movements by providing flexibility and ensuring that the pipeline remains aligned and intact. It helps prevent leaks, reduces mechanical stress, and minimizes the risk of system failure.
Water Supply Systems: The primary application of DW Type Drinking Water Rubber Expansion Joints is in drinking water supply systems. They are used to connect sections of pipelines and help control the pressure fluctuations that are inherent in water supply networks. By providing a secure and flexible connection, these expansion joints ensure that the water flows efficiently without compromising the quality or integrity of the system.
Water Treatment Facilities: These expansion joints are also used in water treatment facilities where pipelines are subjected to high-pressure conditions. In water treatment systems, the DW Type expansion joint absorbs movement and vibration caused by pumps and filtration equipment, contributing to the long-term reliability of the system.
In summary, the DW Type Drinking Water Rubber Expansion Joint is a crucial component for ensuring the stability, safety, and longevity of drinking water pipelines. By absorbing thermal expansion, vibrations, and pipe movements, it helps to prevent leaks, reduce maintenance costs, and ensure the continuous and efficient flow of clean water.
Yes, the DW Type Rubber Expansion Joint is specifically designed to be safe for use in drinking water systems. Safety is a top priority when it comes to products in direct contact with potable water, and this expansion joint is made from non-toxic, food-grade materials that comply with global standards for drinking water safety. Here's why the DW Type expansion joint is considered safe:
Food-Grade Rubber Materials: The DW Type expansion joint is made from specially formulated rubber compounds that meet stringent regulations for materials in contact with drinking water. These rubber materials are free from harmful chemicals, such as lead, phthalates, and heavy metals, which could potentially contaminate the water supply. They are FDA-approved or comply with similar regulatory bodies, ensuring that no toxic substances leach into the water.
Regulatory Compliance: In many countries, drinking water systems must adhere to specific standards set by authorities like the Environmental Protection Agency (EPA) in the United States, the European Union (EU) regulations, or national drinking water standards. The DW Type Rubber Expansion Joint is designed to meet or exceed these regulations. It is tested to ensure it does not release any harmful substances into the drinking water supply, ensuring the safety of the water from source to tap.
Durability and Resistance to Contaminants: The rubber material used in the DW Type expansion joint is highly resistant to aging, ozone, and environmental pollutants. This durability ensures that the rubber does not degrade over time, which could potentially introduce contaminants into the water. The expansion joint is designed for long-term use in drinking water pipelines, providing a reliable, non-toxic solution that does not compromise water quality.
Health and Safety Standards: The DW Type Rubber Expansion Joint undergoes rigorous testing to ensure that it meets health and safety standards. In addition to regulatory certifications, the material used for manufacturing these expansion joints is tested for leachability, ensuring that there is no harmful migration of chemicals into the water. These tests guarantee that the product is safe to use in systems that deliver water for consumption.
Non-Toxic Construction: Unlike some industrial rubber products that may contain toxic additives or fillers, the DW Type Drinking Water Rubber Expansion Joint is constructed from pure, non-toxic rubber that does not compromise the health of the water. The absence of harmful chemical additives ensures that the water remains safe for consumption throughout the life of the joint.
In conclusion, the DW Type Rubber Expansion Joint is completely safe for use in drinking water systems. It is manufactured with non-toxic, FDA-compliant materials that meet the highest standards for water safety, ensuring that no harmful substances will leach into the water supply. Its durability and compliance with health and safety regulations make it an ideal choice for drinking water applications.
The DW Type Drinking Water Rubber Expansion Joint is made from a carefully selected combination of materials designed to meet the demanding requirements of drinking water systems. These materials are chosen for their durability, flexibility, and non-toxicity. Here's an overview of the key materials used:
Rubber Compounds: The primary material in the DW Type expansion joint is rubber. Specifically, the rubber used is formulated from high-quality elastomers that are non-toxic, flexible, and resistant to aging and environmental degradation. The rubber material is typically made from EPDM (Ethylene Propylene Diene Monomer), a synthetic rubber known for its excellent resistance to ozone, weathering, and aging. EPDM is particularly suitable for drinking water systems due to its non-toxic properties and its ability to withstand harsh environmental conditions.
Non-Toxic Additives: In addition to the base rubber compound, the DW Type expansion joint contains carefully selected additives that enhance its performance without compromising its safety. These additives are free from harmful chemicals, ensuring that the product remains safe for potable water applications. The materials are also formulated to resist microbial growth, which is crucial for maintaining water quality.
Fabric Reinforcement: To improve the mechanical strength and pressure resistance of the expansion joint, fabric reinforcements such as polyester or nylon are integrated into the rubber structure. These fabric layers provide added tensile strength and flexibility, ensuring that the expansion joint can withstand the pressure fluctuations and movements common in drinking water systems.
Metal Components: The DW Type expansion joint also includes metal components such as flanges, bolts, and nuts, which are typically made from carbon steel or stainless steel. These metal parts are coated with anti-corrosive materials to ensure long-term durability and resistance to corrosion in water supply systems. The flanges are designed to be compatible with standard pipe sizes and are often treated with protective coatings to prevent rust and ensure they remain free from corrosion over time.
Sealing Materials: The sealing elements of the DW Type expansion joint are made from specialized sealing materials designed to create a leak-proof connection. These seals are often made from rubber or other resilient materials that ensure a secure, tight fit between the joint and the pipes, preventing water leakage. The sealing materials are also designed to resist degradation from water exposure, ensuring that they maintain their performance throughout the joint’s service life.
Protective Coatings: The external surfaces of the DW Type expansion joint may be coated with protective layers, such as Hypalon or nitrile rubber, to enhance their resistance to environmental factors like UV rays, ozone, and weathering. These coatings also provide additional protection against mechanical damage, ensuring the longevity of the product.
Non-Toxic Paints and Coatings: The exterior of the DW Type expansion joint is coated with non-toxic paints or finishes, which further protect it from environmental factors. These coatings also help to prevent surface damage and deterioration caused by exposure to weather or other external conditions.
In conclusion, the DW Type Drinking Water Rubber Expansion Joint is made from high-quality, non-toxic rubber compounds, reinforced fabrics, and durable metal components. Each material is selected for its resistance to environmental factors, pressure, and thermal expansion while ensuring the safety and integrity of the drinking water system. These materials work together to create a flexible, reliable, and long-lasting solution for drinking water pipelines.
The DW Type Rubber Expansion Joint offers several significant advantages that make it an essential component in drinking water systems. Below are some of the key benefits of using this product:
1. Vibration and Shock Absorption: One of the primary advantages of using the DW Type expansion joint is its ability to absorb vibrations and shocks. In many drinking water systems, pumps, compressors, and other equipment generate vibrations that can be transmitted through the piping. Without an expansion joint, these vibrations can cause stress on the pipes, leading to leaks, cracks, or even complete system failure. The DW Type expansion joint absorbs these vibrations, ensuring that the pipeline remains intact and the water flow is uninterrupted.
2. Thermal Expansion Compensation: Drinking water pipelines are subject to thermal expansion as water temperature fluctuates. When the temperature rises, the pipes can expand, which may cause stress on the joints and connections. The DW Type Rubber Expansion Joint is designed to absorb this expansion, allowing the pipeline to expand and contract without causing damage or leaks. This flexibility ensures the system remains intact, even in extreme temperature variations.
3. Pipe Movement Accommodation: In addition to thermal expansion, drinking water pipes are subject to movement caused by factors like ground settling, seismic activity, or external forces. The DW Type expansion joint can accommodate these movements by allowing for slight shifts in the pipe without causing misalignment or pressure buildup. This movement compensation helps reduce the risk of pipe damage and keeps the system stable and operational.
4. Leak-Free Sealing: The DW Type expansion joint is designed to provide a reliable, leak-free seal between two pipe sections. The high-quality rubber and sealing materials used ensure that the joint remains tight even under varying pressure conditions. A secure seal is essential for preventing water loss and maintaining the efficiency of the system. It also ensures that the water remains uncontaminated, maintaining the quality of the drinking water.
5. Durability and Long Lifespan: The materials used in the DW Type Rubber Expansion Joint are highly durable, resistant to aging, ozone, and weathering. These properties ensure that the joint has a long service life, even when exposed to harsh environmental conditions. The durable construction minimizes the need for frequent replacements, reducing long-term maintenance costs.
6. Easy Installation and Maintenance: The DW Type expansion joint is designed for easy installation and simple maintenance. Its flexible structure allows it to be quickly inserted between pipe sections, reducing downtime during installation. The joint is also easy to inspect and maintain, allowing for proactive maintenance and early detection of potential issues before they become major problems.
In summary, the DW Type Rubber Expansion Joint provides multiple advantages, including vibration absorption, thermal expansion compensation, pipe movement accommodation, leak-free sealing, durability, and ease of installation. These benefits make it an essential component in drinking water systems, ensuring that the pipeline remains stable, efficient, and safe for long-term use.
Yes, while the DW Type Rubber Expansion Joint is specifically designed for drinking water systems, it can be adapted for use in other types of pipelines under certain conditions. The primary considerations for using this expansion joint in other applications include the pressure rating, material compatibility, and the type of fluid being transported. Below, we explore some of the possible uses and applications outside of drinking water systems:
1. Industrial Water Systems: The DW Type expansion joint can be used in industrial water systems, where the need for flexibility, vibration absorption, and thermal expansion compensation is similar to that in drinking water systems. In industrial settings, such as manufacturing plants or refineries, pipes are subjected to pressure fluctuations, thermal expansion, and vibrations from heavy equipment. The DW Type expansion joint can help to protect the integrity of the system by accommodating these factors.
2. HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems often involve a network of pipes that carry air or water. The DW Type Rubber Expansion Joint can be used in HVAC systems to reduce vibrations caused by compressors, pumps, or fans. Additionally, it helps to absorb the thermal expansion of pipes in heating and cooling systems, preventing damage or leaks.
3. Wastewater Treatment Plants: In wastewater treatment plants, pipes often carry fluids that vary in pressure and temperature. The DW Type expansion joint can be used in these systems to absorb pressure fluctuations, accommodate pipe movement, and prevent leaks. While the joint is primarily designed for drinking water, similar rubber materials can be adapted for use in wastewater systems to ensure flexibility and durability.
4. Oil and Gas Pipelines: The DW Type Rubber Expansion Joint can be used in certain oil and gas pipeline applications, where vibration, thermal expansion, and pipe movement must be managed. However, in this case, the material selection and pressure ratings must be carefully reviewed to ensure compatibility with the fluids being transported and the environmental conditions.
5. Chemical Processing Systems: In chemical processing plants, pipelines often carry aggressive fluids that can cause wear and tear on standard pipeline joints. The DW Type expansion joint, when made from the appropriate rubber material for chemical resistance, can be used to absorb movements and reduce stress on pipelines in these systems.
In conclusion, the DW Type Rubber Expansion Joint can be adapted for use in various types of pipelines beyond drinking water systems, provided the material and design specifications are suitable for the application. It can be used in industrial, HVAC, wastewater, oil and gas, and chemical processing systems with the right considerations for pressure, temperature, and fluid compatibility. Always consult with the manufacturer for specific recommendations based on the intended use.
Customization Options for Flanges and Single Bellow
| Option | Flange Material | Flange Standards | Sphere (Bellow) Material |
|---|---|---|---|
| 1 | Cast Iron | ANSI (American National) | NR (Natural Rubber) |
| 2 | Carbon Steel | DIN (German Standards) | NBR (Nitrile Butadiene Rubber) |
| 3 | Stainless Steel | JIS (Japanese Standards) | EPDM |
| 4 | Brass | BS (British Standard) | CR (Chloroprene) |
| 5 | Aluminum Alloy | Chemical Industry Standards | FKM (Fluoroelastomer) |
| 6 | PVC | Marine Standards | Silicone |
| 7 | Other Materials | Custom Non-Standard | PTFE Lining |

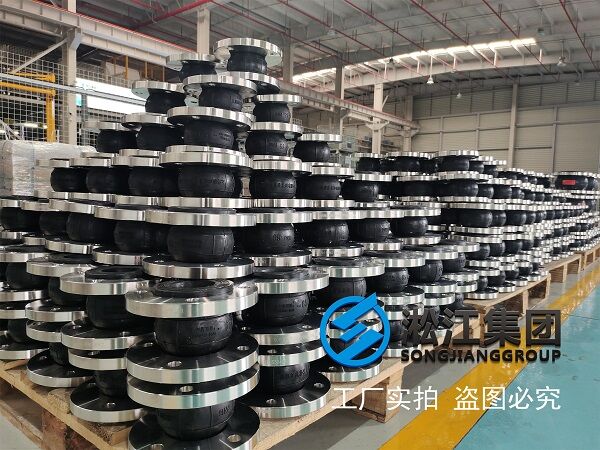

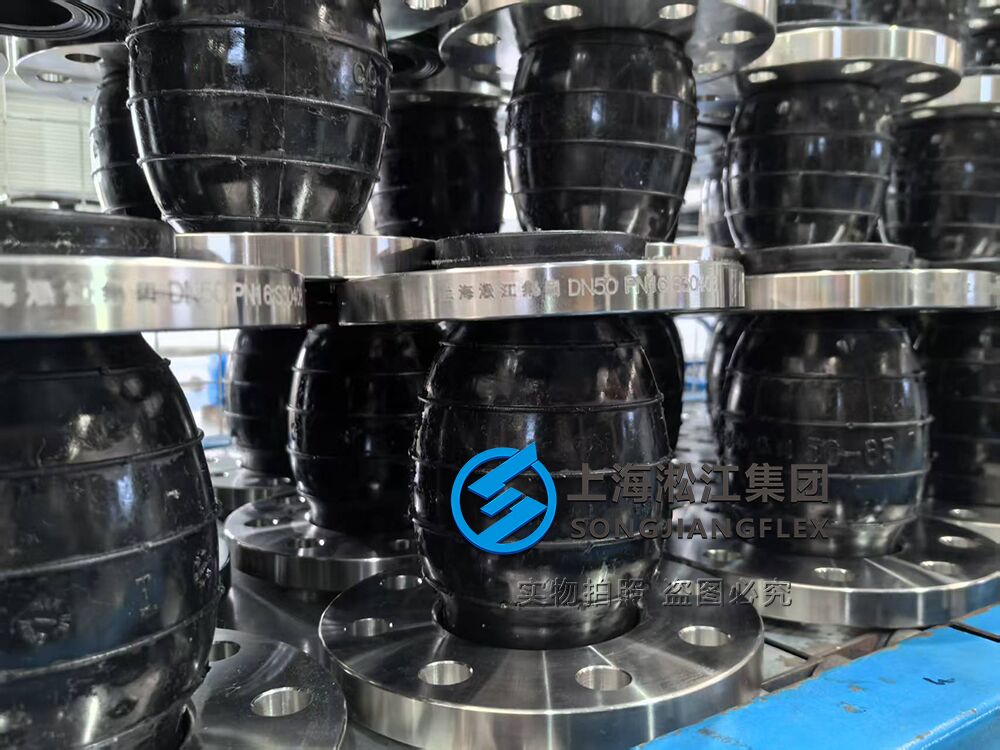

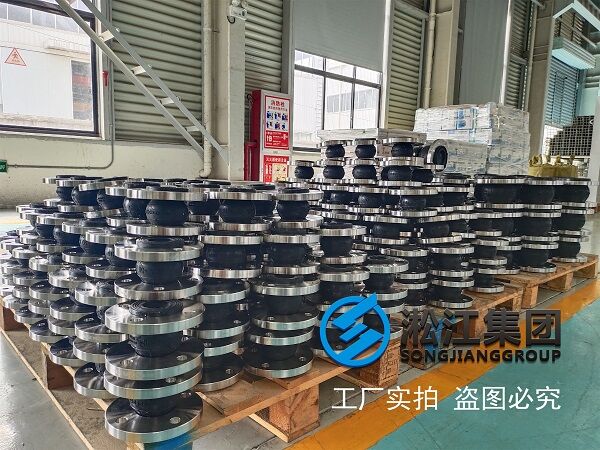

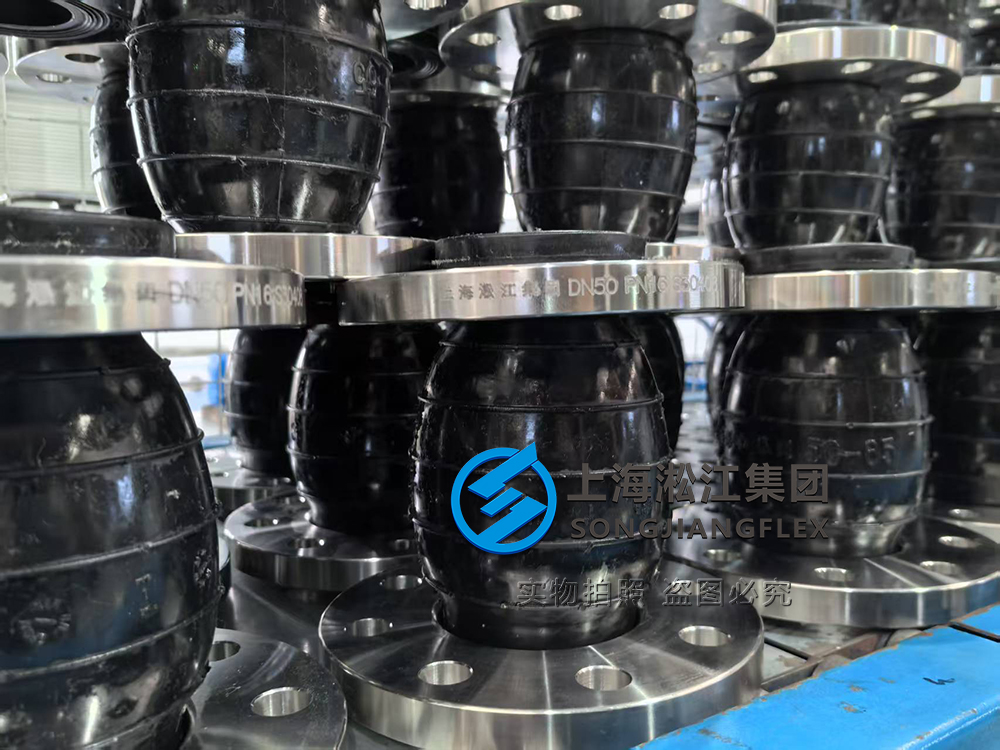

Daily Production Showcase from Factory
Advantages of DW Type Drinking Water Rubber Expansion Joint
In drinking water transport systems, maintaining water quality and ensuring system durability are critical. The DW Type Drinking Water Rubber Expansion Joint is a key component that addresses both of these concerns. It is specifically designed for potable water applications, providing flexibility, vibration isolation, and movement compensation to ensure the longevity and efficiency of water pipes. In this article, we’ll explore the major advantages of using DW Type expansion joints in drinking water systems.
1. Compliance with Drinking Water Standards
The DW Type expansion joints are manufactured using non-toxic, food-grade rubber materials, which are compliant with the strictest standards for potable water systems. This ensures that the joints will not contaminate the drinking water, providing a safe, reliable solution for transporting water. The materials used in these joints meet international safety standards, making them suitable for use in drinking water applications across the globe.
2. Vibration Isolation
Vibration from equipment such as pumps and compressors can negatively impact the integrity of a water system, causing wear on pipes and joints. The DW Type expansion joints are designed to effectively absorb these vibrations, preventing them from being transmitted through the piping system. This reduces the risk of damage to the pipes, ensuring smooth and efficient operation while prolonging the life of the entire system.
3. Thermal Expansion Compensation
Water pipes are subject to expansion and contraction due to temperature fluctuations. The DW Type expansion joints provide the necessary flexibility to accommodate these movements, preventing undue stress on the pipes and joints. This ensures that the system remains intact and leak-free despite temperature changes, which is particularly important in areas with extreme weather conditions.
4. Corrosion Resistance
The materials used in DW Type expansion joints are resistant to corrosion, even when exposed to moisture and chemicals typically found in water systems. This corrosion resistance ensures that the joints will perform reliably over time, maintaining their structural integrity and avoiding potential leaks or failures in the pipeline. This is crucial for drinking water systems where maintaining pipe health is essential to water safety.
5. Leak Prevention
DW Type rubber expansion joints help prevent leaks by compensating for movements and deformations in the pipe network. The flexibility of the expansion joint absorbs shifts in the system, preventing joint strain and maintaining a strong seal. As a result, these joints reduce the chances of leaks, ensuring the system remains water-tight and the water supply is not compromised.
6. Easy Installation and Low Maintenance
DW Type expansion joints are simple to install, making them a practical choice for both new construction and retrofit projects. They require minimal maintenance, as they are highly durable and resistant to wear. Routine inspections are typically enough to ensure that they continue to function effectively, making them a cost-effective solution for water system managers.
7. Reduction of Water Hammer
Water hammer is a sudden pressure surge caused by the rapid closure of valves or changes in water flow. The DW Type expansion joints absorb these shocks, reducing the risk of damage to pipes and joints. By mitigating water hammer, these joints protect the integrity of the entire water distribution system, ensuring that the drinking water infrastructure remains intact and operational.
8. Cost-Effective Solution
By reducing the risk of damage, leaks, and maintenance costs, DW Type expansion joints offer long-term savings for water utilities. The durability of these joints minimizes the need for repairs and replacements, ultimately lowering operational costs. Their effectiveness in preventing system failures and maintaining smooth operations makes them a wise investment in the long run.
Conclusion
The DW Type Drinking Water Rubber Expansion Joint offers a range of benefits for potable water systems. It not only ensures compliance with safety standards but also provides effective vibration isolation, compensates for thermal expansion, resists corrosion, and prevents leaks. With its ability to reduce water hammer and its cost-effective nature, the DW Type expansion joint proves to be an essential component for maintaining a reliable, durable, and efficient drinking water system. For water utilities looking to enhance the safety and longevity of their infrastructure, DW Type expansion joints provide a trusted solution that meets the highest standards.
