BGF-SUS Stainless Steel Bellows Expansion Joint
Flexible. Durable. Built for Performance.
BGF-SUS Stainless Steel Bellows Expansion Joint – Product Introduction
The BGF-SUS Stainless Steel Bellows Expansion Joint is a precision-engineered pipeline solution designed to compensate for thermal expansion, vibration, and mechanical displacement in demanding industrial systems.
Manufactured from high-grade SUS stainless steel, this expansion joint delivers outstanding corrosion resistance, high-temperature endurance, and superior pressure performance. It is specifically developed to protect piping systems from stress-related damage while maintaining long-term operational stability.
The multi-layer stainless steel bellows structure allows effective compensation of axial, lateral, and angular movements, reducing pipeline stress and minimizing vibration transmission. This ensures improved equipment protection, reduced maintenance costs, and enhanced system reliability.
Key Advantages
High-strength SUS stainless steel construction
Excellent resistance to high pressure and high temperature
Superior corrosion resistance for harsh industrial environments
Effective vibration isolation and noise reduction
Compensates axial, lateral, and angular displacement
Customizable dimensions, pressure ratings, and flange standards
Applications
The BGF-SUS Stainless Steel Bellows Expansion Joint is widely used in:
Steam and condensate systems
HVAC and district heating pipelines
Power generation units
Chemical and petrochemical plants
Industrial process piping systems
Reliable Performance for Critical Systems
By absorbing expansion and isolating vibration, the BGF-SUS expansion joint significantly reduces structural stress on pipelines and connected equipment. Its robust design ensures safe, stable, and long-term operation even under continuous high-pressure and high-temperature conditions.
For customized solutions or technical specifications, please contact our engineering team.

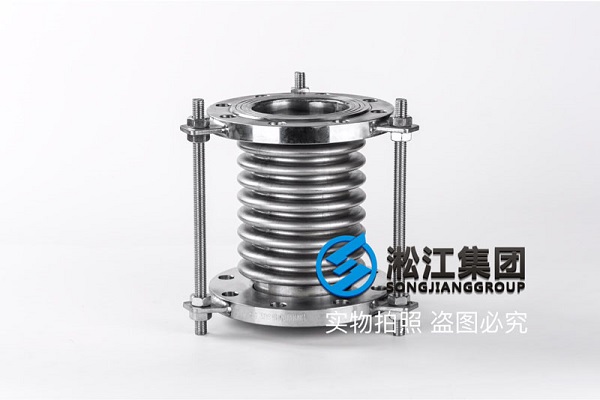

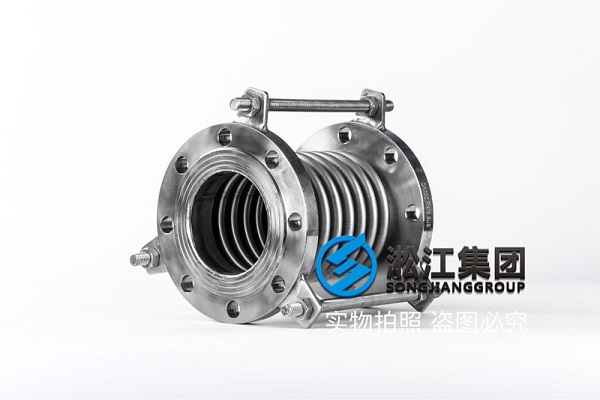

BGF-SUS Stainless Steel Bellows Expansion Joint – Product Photo
The BGF-SUS Stainless Steel Bellows Expansion Joint is specifically engineered to address the core mechanical and thermal challenges found in modern industrial piping systems. In high-temperature and high-pressure environments, pipelines are constantly subjected to thermal expansion, cyclic loading, vibration transmission, and pressure fluctuations. Without proper compensation, these stresses accumulate at fixed points, flanges, and welded joints, leading to fatigue cracking, leakage, and structural deformation.
The precision-formed stainless steel bellows of the BGF-SUS model effectively absorb axial, lateral, and angular displacements generated by temperature changes and mechanical movement. At the same time, it isolates vibration produced by pumps, turbines, compressors, or generator sets, preventing stress transfer to sensitive equipment.
By redistributing stress and allowing controlled flexibility within the system, the expansion joint significantly enhances system integrity, prolongs equipment life, and reduces maintenance downtime. It plays a critical role in safeguarding operational continuity in steam, HVAC, power generation, and chemical processing systems.
The multi-layer stainless steel bellows structure is fundamental to the superior mechanical performance of the BGF-SUS expansion joint. By forming multiple thin stainless steel layers into corrugated bellows, the design achieves an optimal balance between flexibility and structural strength.
Compared with single-layer constructions, multi-layer bellows distribute internal pressure more evenly across the structure. This reduces localized stress concentration and enhances fatigue resistance under cyclic loading conditions. The layered configuration also improves burst pressure performance and extends the operational lifespan of the expansion joint in high-pressure systems.
Additionally, stainless steel materials such as SUS304 or SUS316 provide excellent corrosion resistance, ensuring durability even in aggressive media environments. This combination of structural engineering and material science guarantees long-term reliability in demanding industrial applications.
System safety in industrial pipelines is closely linked to stress control and sealing integrity. The BGF-SUS expansion joint enhances safety by absorbing displacement and preventing excessive stress accumulation at rigid connection points. This significantly reduces the likelihood of flange leakage, weld cracking, or anchor failure.
Furthermore, the bellows structure maintains tight sealing under pressure fluctuations, ensuring stable containment of media such as steam, hot water, or chemical fluids. By isolating vibration and reducing resonance, the expansion joint protects rotating equipment and sensitive instruments from mechanical damage.
Ultimately, it serves as a strategic safety component that supports uninterrupted production and mitigates operational risk in high-demand industrial systems.
Industrial piping systems rarely experience movement in a single direction. Thermal expansion, foundation settlement, equipment vibration, and pressure variations often create combined axial, lateral, and angular displacements. The BGF-SUS Stainless Steel Bellows Expansion Joint is engineered with a precision corrugated geometry that allows multidirectional flexibility while maintaining structural stability.
The axial flexibility of the bellows enables it to compress and extend along the pipe axis, compensating for thermal elongation or contraction. Lateral flexibility allows the joint to absorb transverse offsets caused by misalignment or foundation shifts. Angular flexibility permits slight rotational movements between connected pipe sections without overstressing flanges or welds.
By integrating these movement capabilities into a single engineered component, the BGF-SUS expansion joint ensures balanced stress distribution and prevents structural fatigue. This multidirectional compensation is essential in complex piping layouts where spatial constraints and dynamic loads coexist.
Industrial piping systems rarely experience movement in a single direction. Thermal expansion, foundation settlement, equipment vibration, and pressure variations often create combined axial, lateral, and angular displacements. The BGF-SUS Stainless Steel Bellows Expansion Joint is engineered with a precision corrugated geometry that allows multidirectional flexibility while maintaining structural stability.
The axial flexibility of the bellows enables it to compress and extend along the pipe axis, compensating for thermal elongation or contraction. Lateral flexibility allows the joint to absorb transverse offsets caused by misalignment or foundation shifts. Angular flexibility permits slight rotational movements between connected pipe sections without overstressing flanges or welds.
By integrating these movement capabilities into a single engineered component, the BGF-SUS expansion joint ensures balanced stress distribution and prevents structural fatigue. This multidirectional compensation is essential in complex piping layouts where spatial constraints and dynamic loads coexist.
SUS stainless steel, commonly including grades such as SUS304 and SUS316, offers a combination of corrosion resistance, mechanical strength, and thermal stability that is essential for demanding industrial applications. These materials contain chromium and, in certain grades, molybdenum, which significantly enhance resistance to oxidation and chemical corrosion.
In steam systems, high-temperature pipelines, and chemical processing environments, exposure to moisture, aggressive media, and fluctuating temperatures can rapidly degrade inferior materials. SUS stainless steel maintains structural integrity under such conditions, minimizing pitting, scaling, and stress corrosion cracking.
Additionally, stainless steel exhibits excellent fatigue resistance under cyclic loading, which is critical for expansion joints subjected to repeated movement. The use of high-grade SUS materials ensures long service life, reduced maintenance intervals, and reliable performance across diverse industrial sectors.

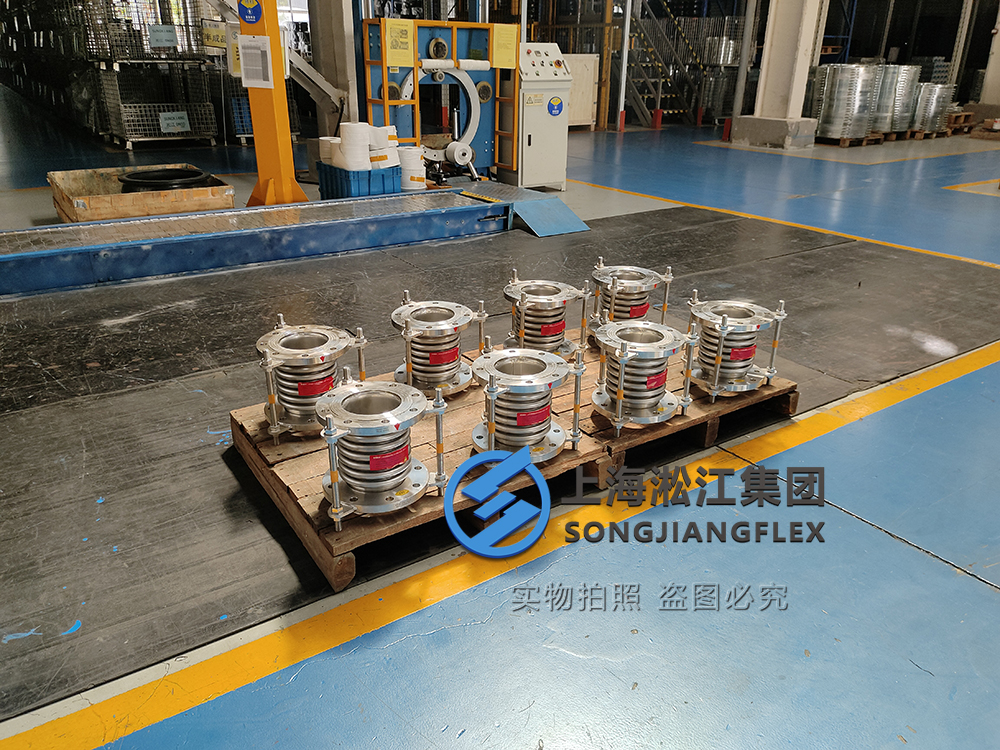

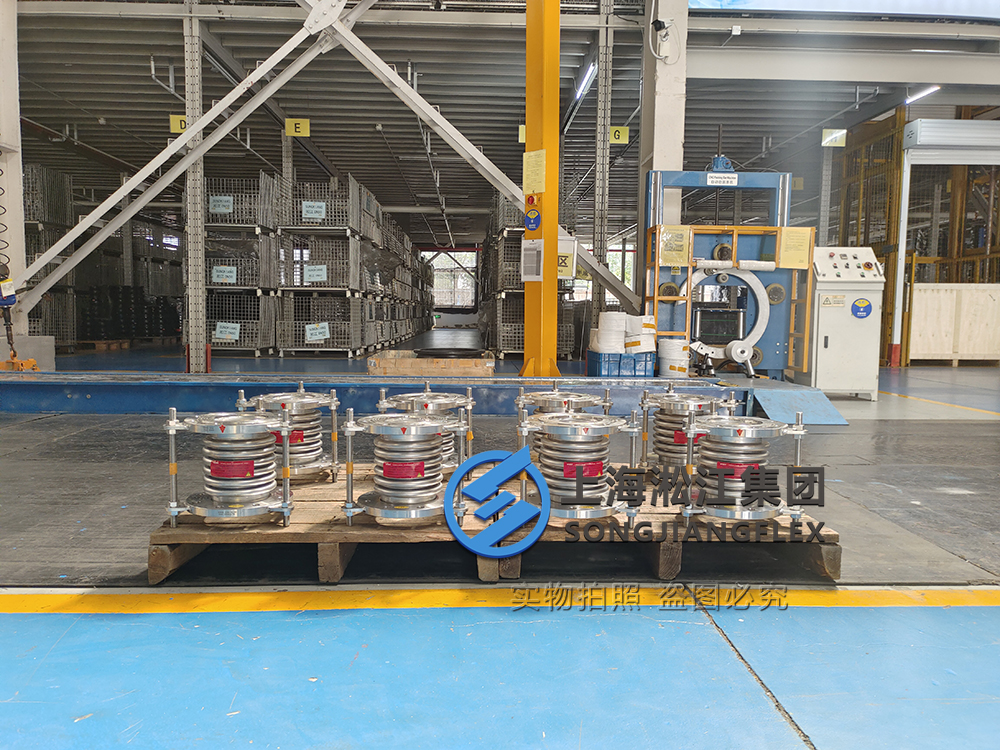

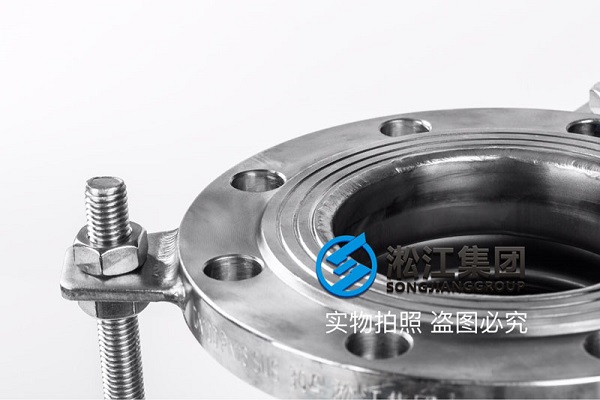

Daily Production Showcase from Factory
Advantages of Using BGF-SUS Stainless Steel Bellows Expansion Joint
The BGF-SUS Stainless Steel Bellows Expansion Joint is engineered to provide superior performance in demanding industrial piping systems where thermal expansion, vibration, pressure fluctuation, and mechanical stress are unavoidable. Its structural design and material composition offer a combination of flexibility, durability, and long-term reliability that makes it an essential component in modern engineering applications. Below are the key advantages of incorporating BGF-SUS expansion joints into industrial systems.
1. Exceptional Thermal Expansion Compensation
One of the primary advantages of the BGF-SUS expansion joint is its ability to effectively absorb thermal expansion and contraction. In high-temperature systems such as steam pipelines, power generation units, and process heating networks, metal pipes naturally expand when heated and contract when cooled. Without adequate compensation, this movement generates excessive stress on flanges, anchors, and welded connections.
The precision-formed stainless steel bellows allow controlled axial movement, relieving accumulated thermal stress and protecting the structural integrity of the entire piping system. This significantly reduces the risk of cracking, deformation, and premature failure caused by repeated temperature cycles.
2. Superior Vibration Isolation and Fatigue Resistance
Industrial equipment such as pumps, compressors, turbines, and generator sets generate continuous vibration during operation. If not properly isolated, these vibrations are transmitted through the pipeline network, causing resonance, noise, and accelerated fatigue damage.
The flexible bellows structure of the BGF-SUS expansion joint acts as a dynamic buffer, absorbing mechanical vibration and minimizing stress transfer to connected equipment. Stainless steel materials offer excellent fatigue resistance under cyclic loading, ensuring long service life even in systems exposed to frequent pressure and movement variations.
By reducing vibration transmission, the expansion joint helps maintain system stability and lowers maintenance frequency.
3. High Pressure and High Temperature Capability
The BGF-SUS expansion joint is manufactured using high-grade SUS stainless steel, such as SUS304 or SUS316, which provides excellent strength under elevated temperature and pressure conditions. Multi-layer bellows construction enhances burst pressure resistance and improves structural durability.
Compared with rubber expansion joints, stainless steel bellows can withstand higher operating temperatures, making them particularly suitable for steam systems, thermal oil pipelines, and other high-energy industrial processes. This capability ensures safe and stable operation in critical infrastructure environments.
4. Outstanding Corrosion Resistance
Industrial pipelines often carry aggressive media, including steam condensate, chemical fluids, and high-humidity gases. Corrosion can significantly reduce equipment lifespan and compromise sealing performance.
The chromium-rich composition of SUS stainless steel forms a protective oxide layer on the surface, preventing oxidation and chemical attack. In more corrosive environments, SUS316 with added molybdenum provides enhanced resistance to pitting and chloride corrosion.
This corrosion resistance extends the operational life of the expansion joint and reduces replacement frequency, contributing to lower lifecycle costs.
5. Multidirectional Movement Capability
Unlike rigid pipe connections, the BGF-SUS expansion joint is designed to compensate axial, lateral, and angular displacement simultaneously. This multidirectional flexibility is crucial in complex piping systems where space constraints and structural shifts may cause combined movement patterns.
By accommodating misalignment and foundation settlement, the expansion joint prevents excessive stress concentration at fixed supports and connection points. This improves overall system resilience and ensures consistent performance over time.
6. Improved System Safety and Sealing Integrity
Safety is a critical concern in industrial applications. The BGF-SUS expansion joint maintains sealing integrity under fluctuating pressure and temperature conditions. Properly engineered bellows geometry ensures leak-free operation while allowing necessary flexibility.
By reducing mechanical stress and preventing structural overload, the expansion joint minimizes the risk of unexpected failures, leaks, or shutdowns. This contributes to enhanced workplace safety and environmental protection.
7. Long Service Life and Reduced Maintenance Costs
Due to its fatigue-resistant stainless steel construction and optimized stress distribution, the BGF-SUS expansion joint offers extended service life compared with many alternative compensation methods.
Its ability to protect pipelines and connected equipment reduces wear on critical components, lowering maintenance interventions and unplanned downtime. Over time, this translates into significant cost savings in both operational and capital expenditure.
8. Customization for Diverse Industrial Requirements
The BGF-SUS Stainless Steel Bellows Expansion Joint can be customized to meet specific technical requirements, including nominal diameter (DN), pressure rating (PN), flange standards, and material selection. Engineering calculations ensure compatibility with system movement, pressure, and temperature conditions.
This adaptability allows the expansion joint to serve a wide range of industries, including power generation, petrochemical processing, HVAC systems, marine applications, and heavy industrial plants.
9. Contribution to Overall System Efficiency
By minimizing vibration loss, reducing structural stress, and maintaining alignment, the BGF-SUS expansion joint supports optimal system performance. Stable piping systems operate more efficiently, with fewer disruptions and energy losses caused by mechanical instability.
In high-demand industrial environments where operational continuity is essential, the expansion joint plays a strategic role in maintaining productivity and equipment reliability.
Conclusion
The BGF-SUS Stainless Steel Bellows Expansion Joint offers a comprehensive solution for managing thermal expansion, vibration isolation, high-pressure resistance, and corrosion protection in industrial piping systems. Its advanced stainless steel bellows structure ensures flexibility without compromising strength, making it a critical component for long-term system stability and safety.
By integrating this expansion joint into pipeline design, operators can enhance reliability, extend equipment lifespan, reduce maintenance costs, and ensure consistent performance under demanding operating conditions.
