PDRS Series Bell Mounts
Reliable Vibration Control, Unmatched Durability.

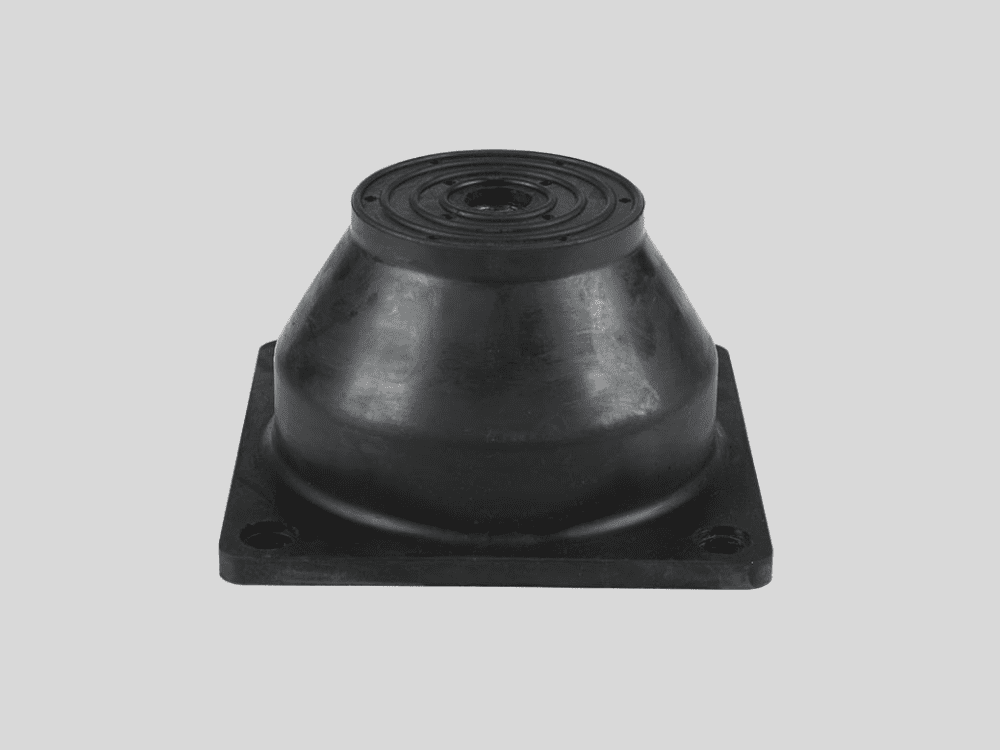

PDRS Series Bell Mounts
PDRS Series Bell Mounts operate based on controlled elastic deformation and material damping of high-quality natural rubber. When subjected to dynamic loads, the rubber element temporarily stores vibrational energy and then dissipates it through internal friction—this process significantly reduces transmitted vibration.
The bell-shaped enclosure ensures that deformation occurs primarily in the axial compression direction, resulting in a predictable low natural frequency, which is essential for isolating low-frequency machinery vibration.
Additionally, the controlled radial restriction created by the steel bell housing prevents excessive lateral displacement and shear deformation, offering excellent stability even when equipment experiences multi-directional vibration forces.
The bell-shaped steel housing is a core design advantage because it:
Improves load distribution by directing force uniformly into the rubber element, minimizing localized stress and increasing fatigue life.
Limits lateral displacement, providing better motion control for rotating and reciprocating machinery.
Protects the rubber element from environmental exposure such as oil mist, ozone, UV light, debris, and chemical vapors—common in industrial plants.
Enhances radial stiffness, ensuring the mount does not deform excessively during heavy vibration.
Supports higher dynamic loads, making it suitable for compressors, generator sets, and pumps with strong cyclical forces.
Overall, the bell housing transforms the mount into a semi-enclosed, mechanically reinforced system that remains stable and durable under long-term cyclic vibration.
Load capacity is determined through a combination of:
Rubber hardness (Shore A), which defines stiffness and static deflection behavior.
Effective rubber volume and geometry, influencing compression resistance and damping properties.
Housing structure, which regulates radial expansion and deformation patterns.
Dynamic load coefficient, which adjusts for differences between static and cyclic loads.
Finite Element Analysis (FEA) simulations that predict stress distribution, deformation, and fatigue under extreme loads.
During development, engineers simulate repeated vibrational cycles to ensure that the mount can maintain structural integrity during long-term machine operation—often in the millions of cycles.
The result is a mount that can safely handle both peak dynamic loads and continuous static loads without degradation.
The PDRS Series is optimized to isolate:
Low-frequency vibration generated by rotating machinery (fans, compressors, generators).
High-amplitude pulsating vibration found in piston pumps and reciprocating engines.
Random vibration spectra often present in HVAC systems and industrial motors.
Transient shock loads, such as compressor start/stop cycles and generator ignition.
Its damping characteristics effectively reduce:Acoustic noise transmission
Mechanical resonance
Structure-borne vibration
By lowering transmissibility across a wide frequency range, the PDRS Series significantly improves the working stability and operational smoothness of industrial equipment.

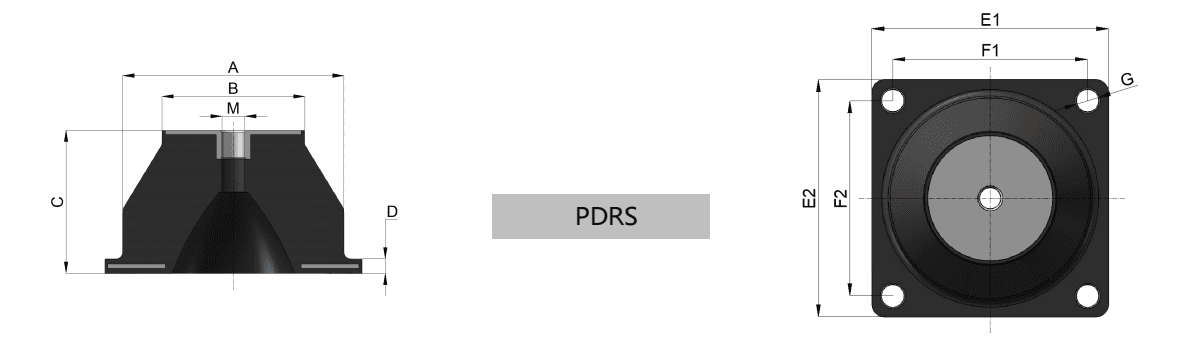

Installation Diagram of PDRS Series Bell Mounts

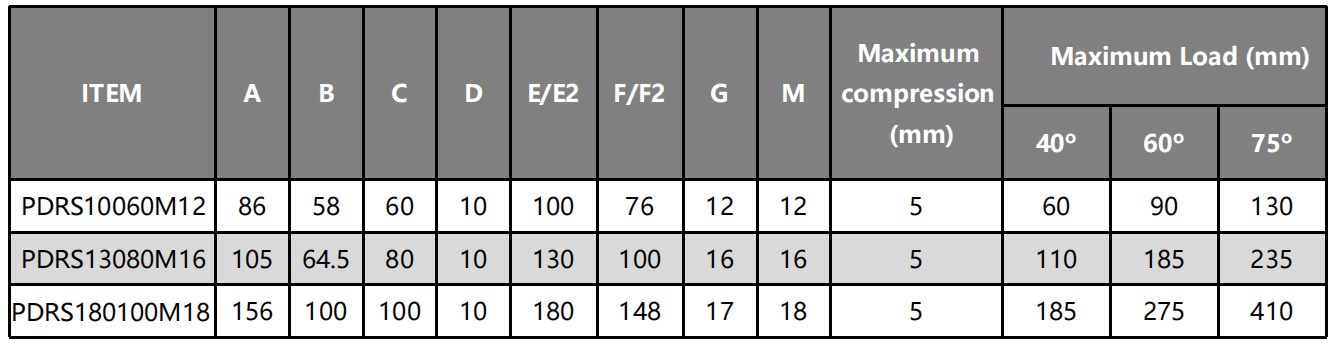

Parameter Table of PDRS Series Bell Mounts
If you like this PDRS Series Bell Mounts but have any concerns or are not fully satisfied with certain aspects, feel free to contact us with your feedback. We can customize it by creating a new mold based on your specific requirements. Our professional engineers will provide a free design service!
For any inquiries, please contact us at: [email protected]
