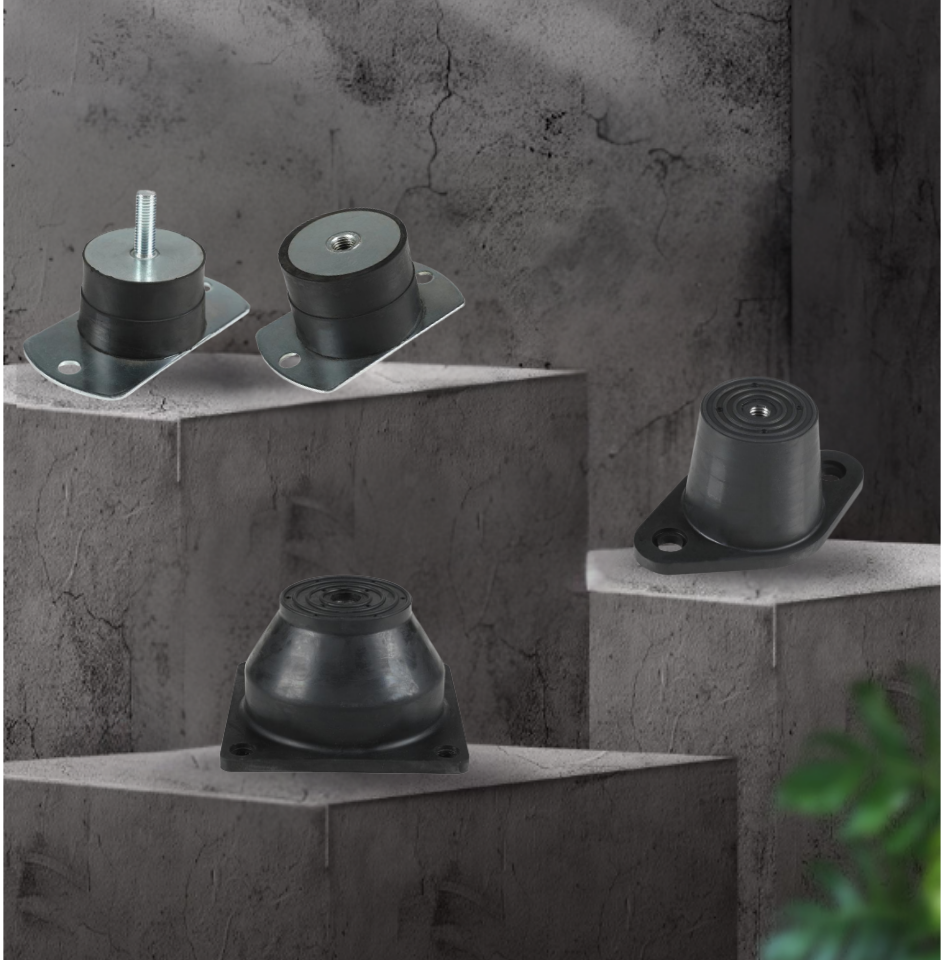

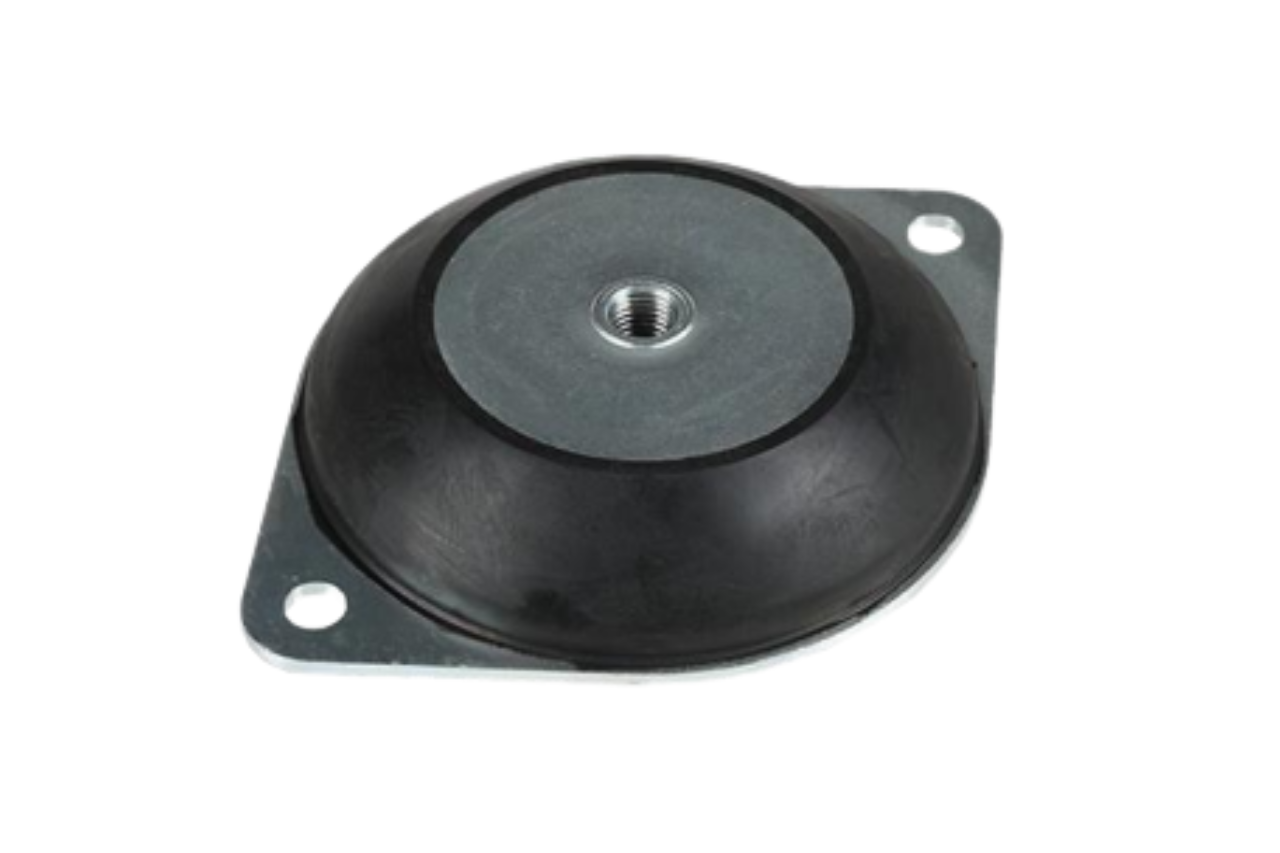

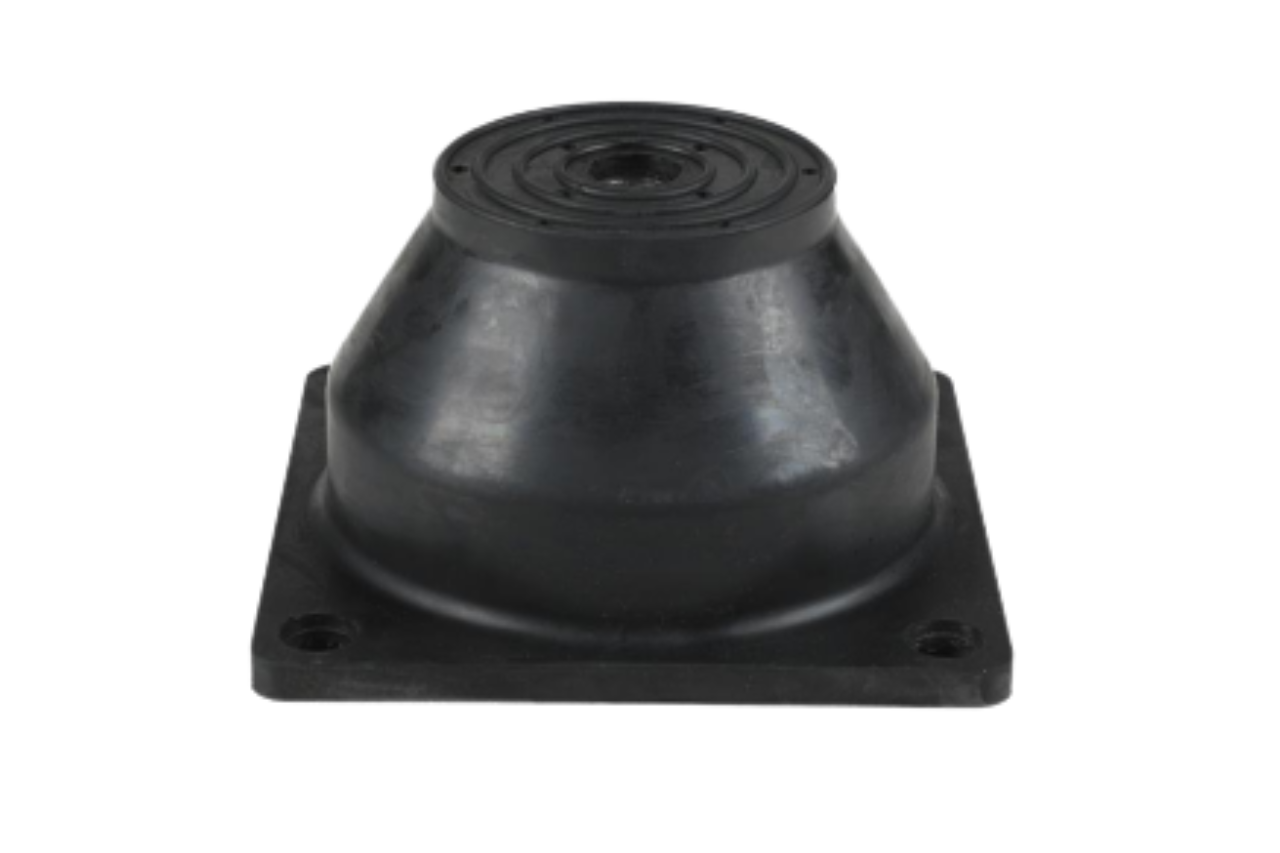

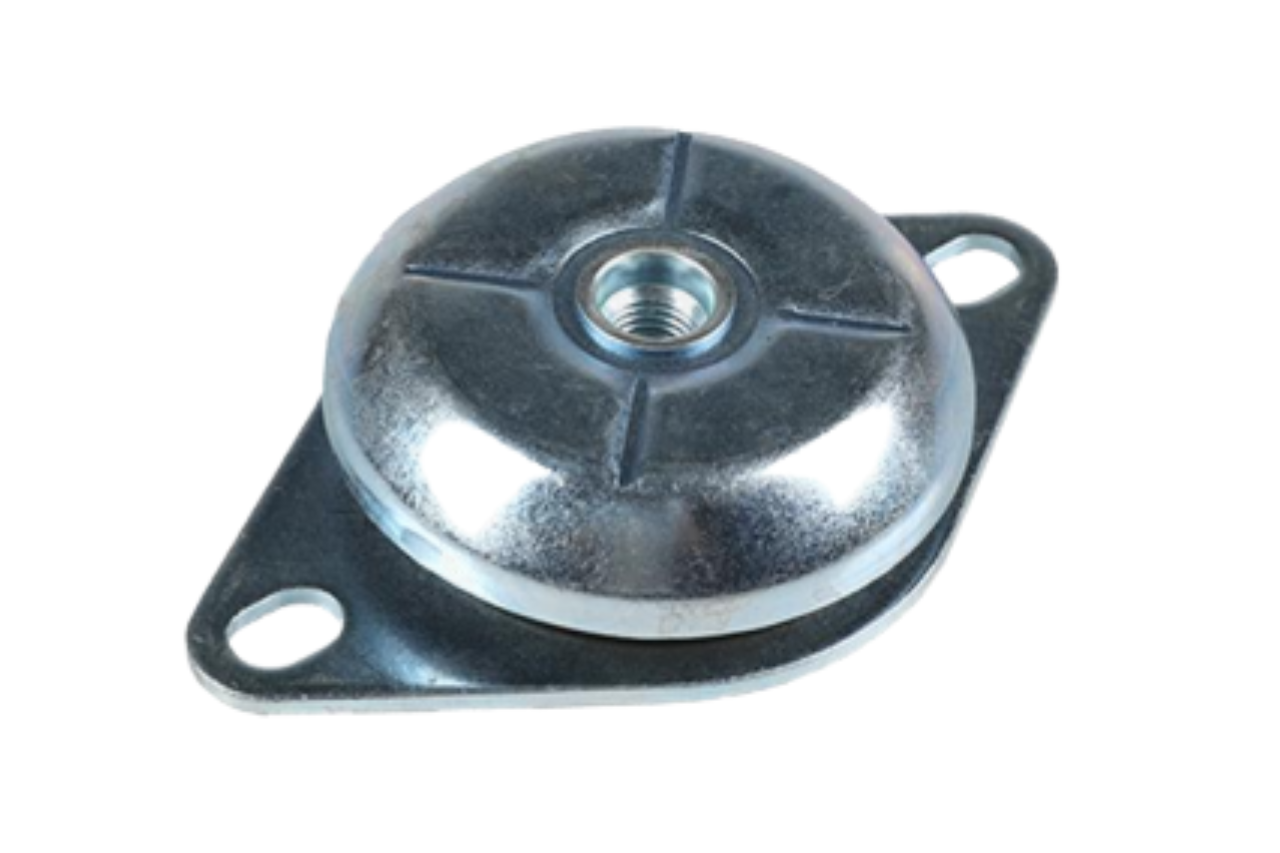

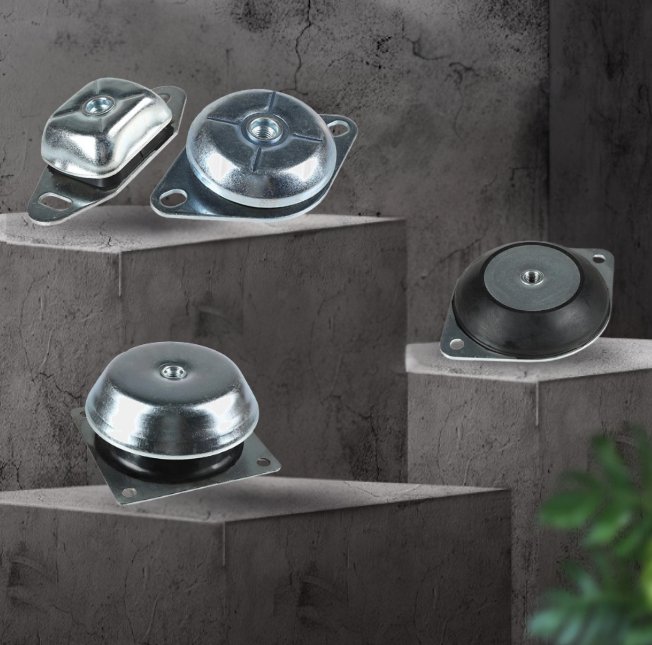

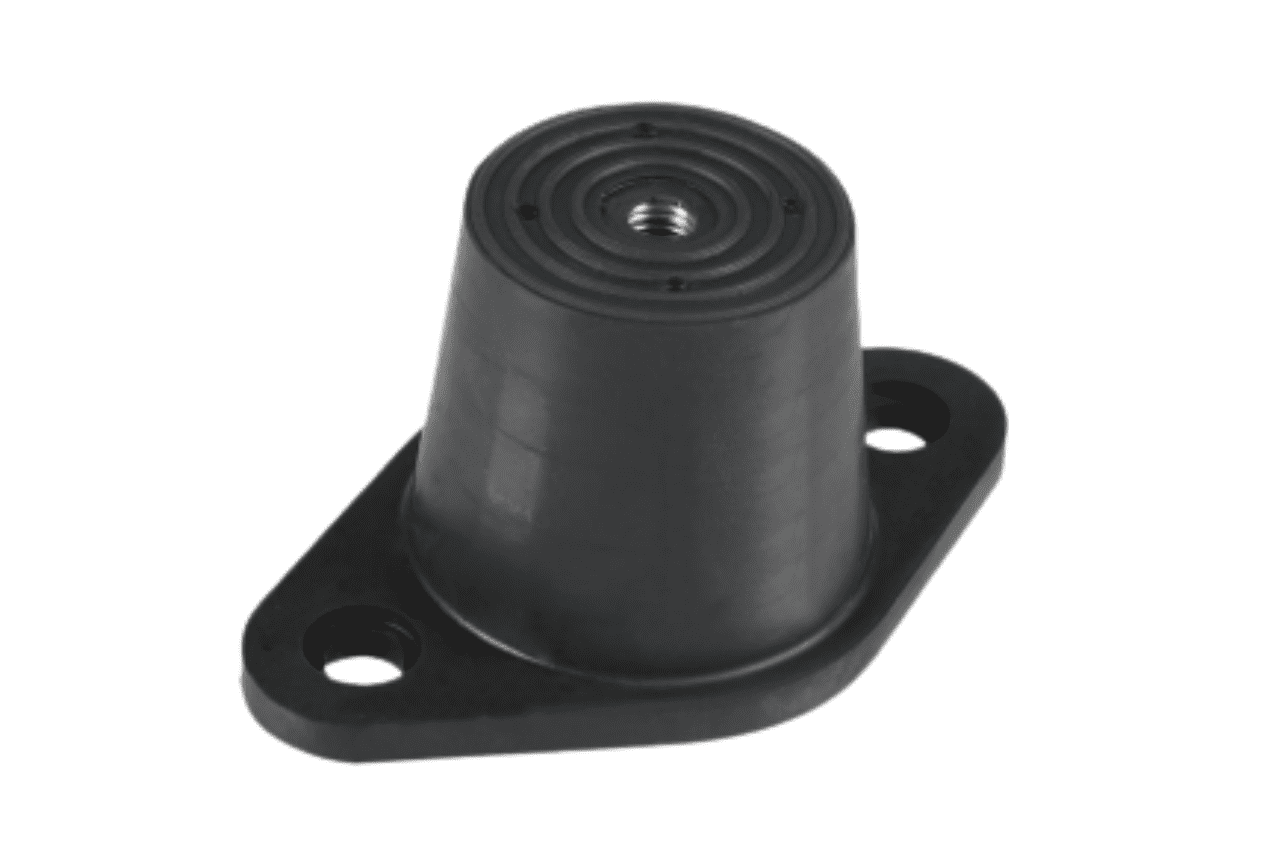

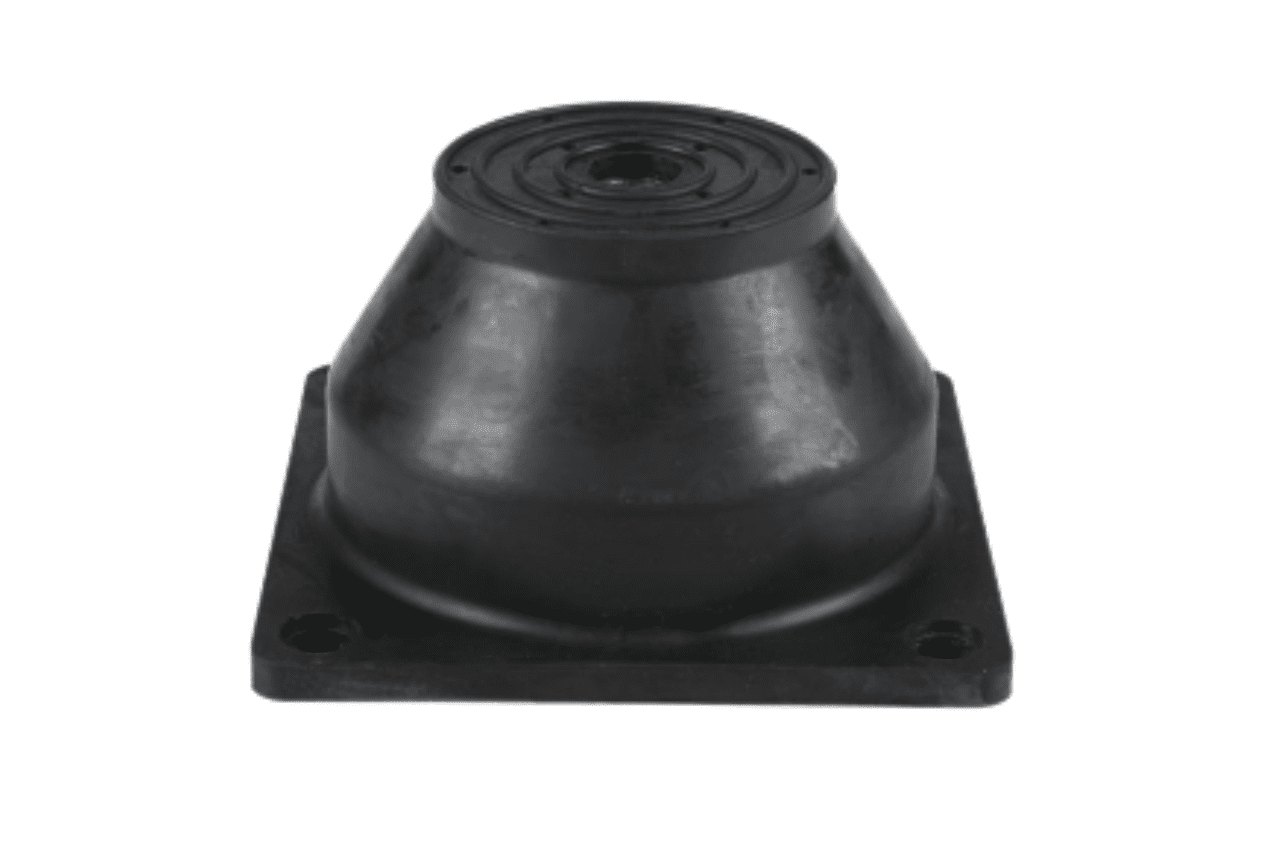

Rubber Bell Mounts

Bell mounts are widely used across various industries where vibration and noise control are critical to equipment performance and structural safety. Their compact design and efficient damping capability make them a popular choice for both light-duty and heavy-duty applications.

One of the most common areas where bell mounts are applied is the HVAC industry. They are frequently installed in air handling units (AHUs) and fan coil units (FCUs) to reduce the vibration transmitted to building structures. This not only improves system efficiency but also minimizes operational noise in indoor environments such as hotels, offices, and hospitals.

Bell mounts are also highly effective in pump and compressor systems. These machines generate significant mechanical vibrations during operation. Using bell mounts helps isolate these vibrations, reducing wear on the equipment and lowering the risk of structural damage.

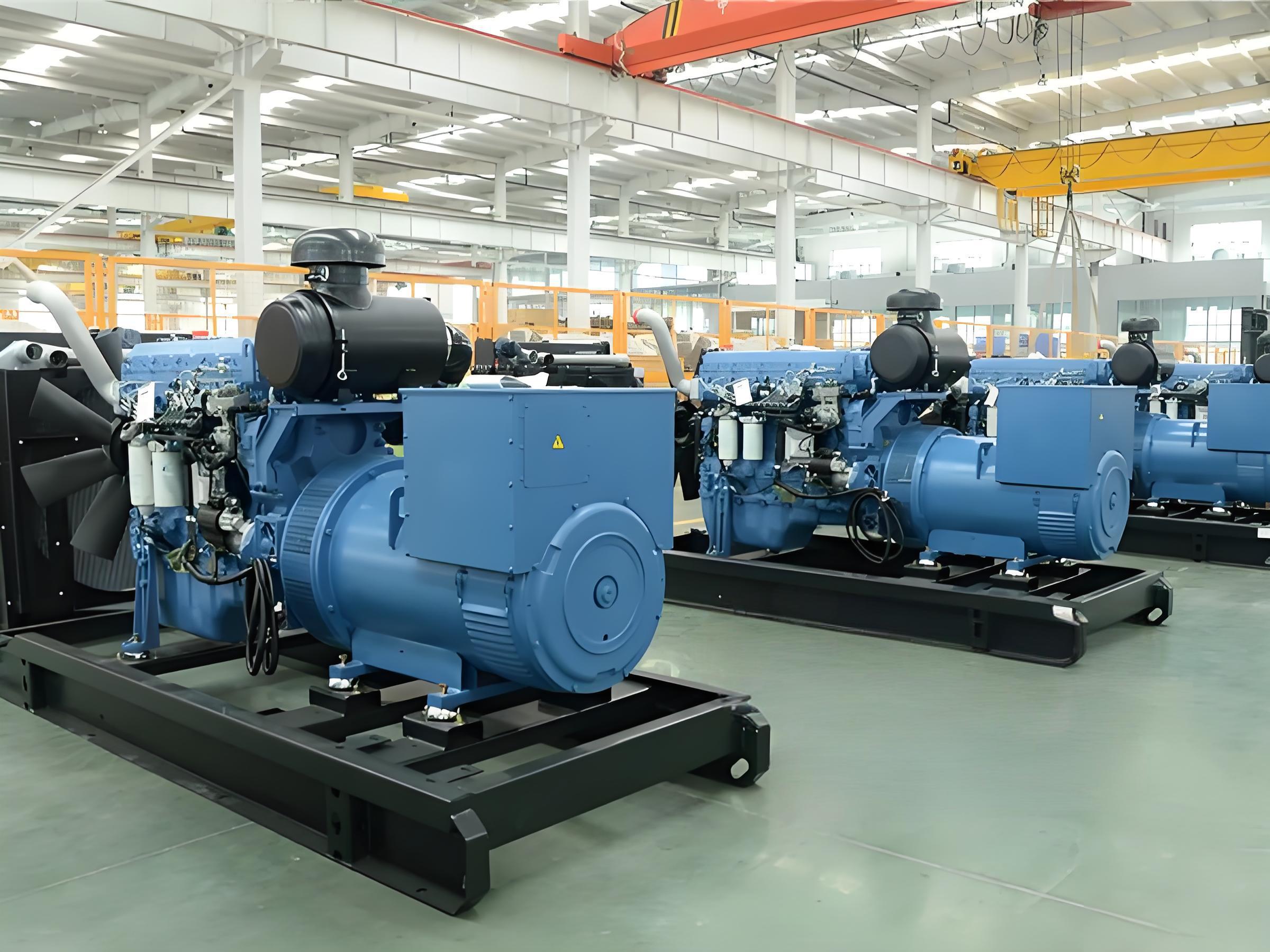

In diesel generator sets, bell mounts serve as essential anti-vibration supports. They absorb the engine’s dynamic forces, ensuring smooth operation and protecting the mounting base from stress and fatigue. This is especially important in emergency power systems where reliability is critical.

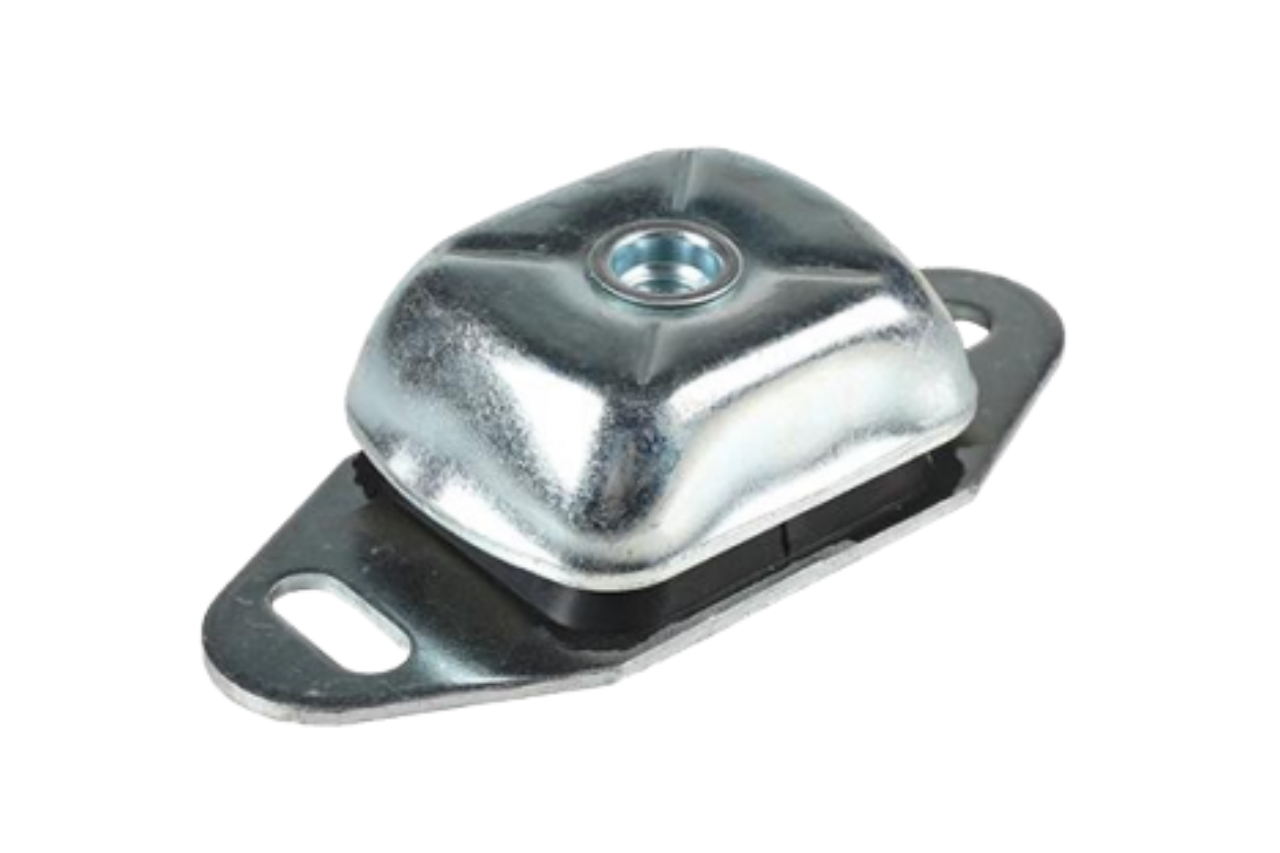

Marine and offshore applications also benefit from bell mounts. Due to their corrosion-resistant construction and compact profile, bell mounts are ideal for use in ship engines, hydraulic systems, and onboard HVAC systems, where space and environmental resistance are both important.

In summary, bell mounts are used in:

• HVAC equipment (AHU, FCU)
• Water pumps and compressors
• Diesel and gas generators
• Marine vessels and offshore rigs
• Industrial machinery and power units

Wherever vibration and structure-borne noise need to be minimized, bell mounts offer a durable and space-saving solution.

Rooftop equipment such as cooling towers, air handling units (AHUs), and generators often produce significant vibration. These vibrations can travel through concrete structures, disturbing building occupants and, over time, leading to fatigue or micro-cracks in roof slabs. Without proper isolation, the roof becomes a channel for structural noise and vibration.

Rubber bell mounts effectively isolate the equipment from the building structure, significantly reducing vibration transmission to concrete roofs. Their flexible, bell-shaped design absorbs and attenuates vibration energy, preventing structural noise propagation and protecting rooftop integrity. They are ideal for HVAC systems, fans, and generators installed on rooftops.

How Bell Mounts Work

Bell mounts use specially molded rubber components that isolate vibrations in both vertical and horizontal directions. The bell-shaped form provides greater displacement capacity and energy absorption. When the equipment operates, the rubber body undergoes elastic deformation, effectively blocking the transmission of vibration into the concrete structure. This helps reduce structure-borne noise and extends the lifespan of both equipment and the rooftop.

Common Rooftop Applications

Rubber bell mounts are commonly used for:

• Rooftop air handling systems (AHU, FCU)

• Cooling towers in commercial buildings

• Diesel generators on industrial rooftops

• Rooftop electrical cabinets and solar inverters

With weather-resistant rubber, these mounts can withstand exposure to rain, UV, humidity, and temperature fluctuations for long-term outdoor use.

Installation Tips

To achieve optimal vibration isolation:

• Select models based on equipment weight and vibration frequency

• Install mounts symmetrically under the equipment

• Use steel base plates if extra stability is needed

• Avoid direct anchoring of equipment to concrete — use anchored isolation systems instead

When installed correctly, vibration transmission can be reduced by more than 80%.

Why Bell Mounts Perform Better than Flat Rubber Pads

Flat rubber pads offer basic isolation, but bell mounts provide key advantages:

• Dual-direction (vertical + lateral) vibration isolation

• Greater durability under dynamic loads

• Better stability on uneven rooftop surfaces

• Superior resistance to weathering and UV exposure

They are a more professional and long-lasting solution for rooftop vibration issues.

Conclusion

Yes, rubber bell mounts can significantly reduce vibration transmission from equipment to concrete roofs. Their unique rubber structure and excellent elastic properties make them a reliable choice for protecting rooftops, reducing noise, and ensuring smooth, quiet operation of rooftop machinery.

Compressors and pumps are essential equipment in many industrial and commercial settings, but they inherently produce vibrations during operation. These vibrations can cause noise, mechanical wear, and even damage to connected piping and foundations if not properly controlled.

Bell mounts offer a practical and effective solution to reduce these unwanted vibrations.

How Bell Mounts Work to Isolate Vibration

Bell mounts consist of a resilient rubber body shaped like a bell, often combined with metal inserts for stability. This design allows the mount to flex and absorb vibrational energy generated by compressors and pumps. When the equipment vibrates, the rubber compresses and deforms elastically, converting kinetic energy into heat and reducing the amount of vibration transmitted to the surrounding structure.

Benefits of Using Bell Mounts for Pumps and Compressors

• Dampening Multiple Directions: Bell mounts isolate vibration in vertical and horizontal directions, which is crucial because pumps and compressors often vibrate in complex patterns.

• Reducing Noise: By minimizing vibration transmission, bell mounts also reduce structure-borne noise that can travel through floors and walls.

• Protecting Equipment and Infrastructure: Reduced vibration lowers wear on equipment parts and connected piping, extending service life and reducing maintenance costs.

• Easy Installation: Bell mounts are compact and simple to install under existing equipment bases without major modifications.

Typical Applications

• HVAC compressors in commercial buildings

• Water pumps in industrial plants

• Refrigeration compressors in supermarkets and cold storage

• Air compressors in manufacturing facilities

Their durability and weather resistance also make bell mounts suitable for outdoor or rooftop installations.

Installation Considerations

For optimal vibration isolation:

• Choose bell mounts sized for the weight and vibration frequency of the equipment.

• Position mounts evenly under the equipment base to distribute load.

• Avoid rigid connections between equipment and structure; the mounts should provide a flexible interface.

• Periodically inspect mounts for wear or degradation and replace when necessary.

Why Bell Mounts Are Preferred Over Other Isolators

Compared to flat pads or coil springs, bell mounts offer a balanced combination of flexibility, load capacity, and durability. Their molded rubber design provides inherent damping without the need for additional components. This makes them highly effective and low maintenance.

Conclusion

Bell mounts reduce compressor and pump vibration by absorbing and isolating vibrational energy through their flexible rubber bell shape. This not only improves equipment longevity and reduces noise but also protects building structures. Their ease of installation and proven effectiveness make them a popular choice for vibration control in a wide range of applications.

Yes — bell mounts are exceptionally well-suited for HVAC systems. In fact, they are among the most commonly used vibration isolators in heating, ventilation, and air conditioning (HVAC) applications due to their compact size, effective vibration control, and durability in challenging environments.

1. Why HVAC Systems Need Vibration Isolation

HVAC equipment such as AHUs (Air Handling Units), FCUs (Fan Coil Units), compressors, and chillers all produce mechanical vibrations during operation. These vibrations can:

• Transfer to building structures

• Cause disturbing noise

• Lead to premature equipment wear

• Reduce comfort in indoor environments

Without proper isolation, these issues can lead to expensive maintenance and poor building performance.

2. Bell Mounts: The Ideal Fit for HVAC

Bell mounts offer a compact and efficient solution for isolating vibrations in HVAC systems. Their design allows them to absorb both vertical and lateral vibrations, making them ideal for:

• Rooftop HVAC units

• Wall-mounted fan coil units

• Floor-mounted air handlers

• Small duct-mounted compressors

The built-in rubber element inside the bell-shaped housing absorbs vibrations at their source, preventing them from traveling through the unit’s base to walls, ceilings, or floors.

3. Corrosion Resistance for Outdoor HVAC

Many HVAC units are installed outdoors or in damp mechanical rooms. Bell mounts are often made with galvanized or stainless steel housings, providing long-term resistance to moisture, rust, and chemical exposure — a must for HVAC environments.

4. Easy Installation in Tight Spaces

Bell mounts are easy to install with standard bolts and don’t require special tools or large clearance space. This makes them a preferred choice for HVAC contractors and engineers looking for a fast, reliable, and low-profile solution.

In conclusion, bell mounts are highly compatible with HVAC systems, offering excellent vibration control, long service life, and ease of installation. Whether for a rooftop chiller or an indoor FCU, bell mounts help HVAC equipment run smoother, quieter, and longer.

Precision equipment such as medical devices, laboratory instruments, and sensitive measuring systems require extremely stable environments to function accurately. Even minor vibrations can cause errors or damage delicate components. Controlling vibration in these applications is challenging, and choosing the right isolator is critical.

Rubber bell mounts, with their excellent vibration damping and shock absorption properties, can be a suitable solution for certain types of precision equipment, especially where moderate isolation and durability are required.

Vibration Damping Characteristics of Bell Mounts

Bell mounts use high-quality elastomer rubber that deforms elastically to absorb and dissipate vibration energy. This reduces the amplitude and frequency of vibrations transmitted to the equipment, providing a quieter and more stable operating environment.

The bell shape allows for multidirectional flexibility, isolating vibrations in vertical, lateral, and torsional directions. This is important because precision devices often experience complex vibration patterns.

Suitability for Precision Equipment

Bell mounts are ideal for precision equipment that operates within moderate vibration frequency ranges and does not require ultra-high isolation performance. Examples include:

• Laboratory centrifuges

• Analytical balances

• Small medical imaging devices

• Precision pumps and compressors

However, for extremely sensitive equipment needing sub-micron vibration isolation, specialized isolators like pneumatic or active vibration control systems may be more appropriate.

Advantages Over Other Isolation Methods

Compared to hard mounts or simple rubber pads, bell mounts offer better shock absorption and vibration damping due to their unique shape and rubber formulation. They provide:

• Reliable vibration isolation in multiple directions

• Resistance to environmental factors like moisture and temperature changes

• Long service life with low maintenance

These features make bell mounts a practical, cost-effective choice for many precision instruments.

Installation and Maintenance Tips

• Ensure mounts are sized correctly for equipment weight and vibration profile.

• Install mounts symmetrically to maintain equipment balance.

• Regularly inspect for rubber aging or cracks to prevent performance degradation.

• Avoid excessive compression beyond the recommended load range.

Limitations

While bell mounts reduce vibration effectively, they are passive isolators and do not adapt actively to varying vibration frequencies or amplitudes. For highly sensitive precision instruments operating in ultra-low vibration environments, more advanced active isolation systems may be necessary.

Conclusion

Bell mounts can be successfully used to reduce vibration in many types of precision equipment, providing stable operation and protecting delicate components. Their multidirectional vibration isolation, durability, and ease of installation make them a popular choice for laboratory and medical devices where moderate vibration control is sufficient.
